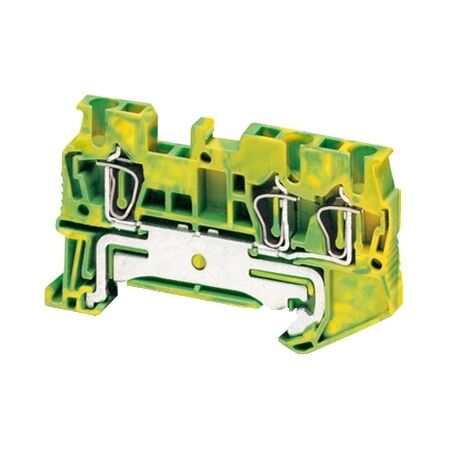

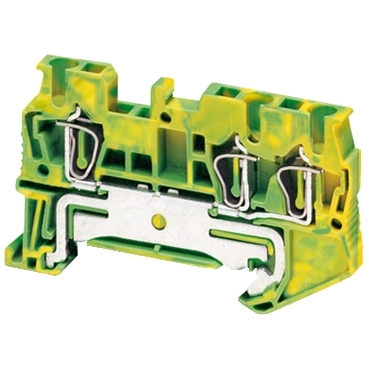

2.5mm Earth Terminal Block | Spring Type | 1 Pole with 3 Connection Points | Green-Yellow Color | @Each of 1 | by GAF
The 2.5mm Earth Terminal Block is a spring type terminal designed for secure and reliable connections in electrical distribution panels and industrial control systems. With a protective earth (PE) function and green-yellow color coding, it accommodates 2.5mm² conductors and features 1 pole with 3 connection points, ensuring compliance with Australian electrical standards for safe operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2.5mm Earth Terminal Block | Spring Type | 1 Pole with 3 Connection Points | Green-Yellow Color | @Each of 1 | by GAF
Brand: GAF
SKU: SCHNSYTRR23PE
Alternatively Known As: Earth terminal block, 2.5mm² PE terminal, Linergy TR earth terminal, spring clamp earth terminal, green-yellow terminal block
Technical Specifications
- Type: Spring type terminal block
- Function: Protective earth (PE)
- Conductor size: 2.5mm²
- Number of poles: 1
- Number of connection points: 3 (1x2 configuration)
- Color: Green-yellow
- Mounting: DIN rail
- Material: Flame-retardant thermoplastic
- Rated voltage: 500V
- Rated current: 24A
- Dimensions (H x L x W): 45mm x 40mm x 6mm
- Weight: 0.1 kg
Key Features
- Spring type terminal block for secure and reliable connections
- Protective earth (PE) terminal with green-yellow color coding
- Accommodates 2.5mm² conductors
- 1 pole, 3 connection points (1x2 configuration)
- Durable construction for industrial environments
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and safe operation.
Applications
- Electrical distribution panels
- Industrial control panels
- Switchboards
- Machinery wiring
- General electrical installations requiring earth/ground connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables safe and efficient electrical grounding, reducing risk of electrical faults and improving system safety.
- Durable materials extend product lifespan, reducing replacement frequency and waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The GAF Terminal 2.5mm Earth 1P 1x2 is available for immediate purchase. Ideal for use in electrical panels, switchboards, and industrial control systems requiring reliable earth connections.
