Earthing Nut 32mm | Brass Construction | Secure Connection for Metal Glands | Tested to BS EN 50262 by Cabac

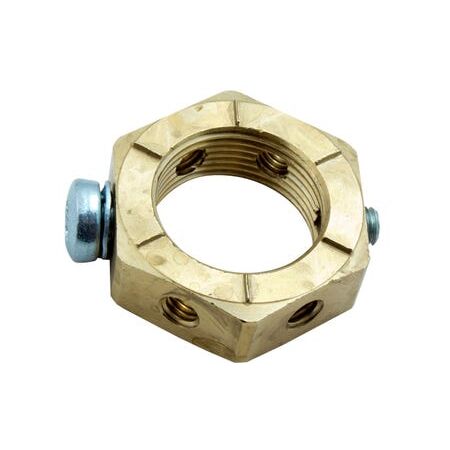

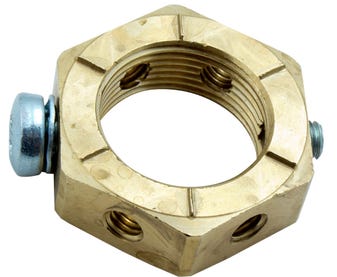

The Cabac Earthing Nut 32mm is a brass locknut designed for terminating and earthing metal cable glands, providing a secure and reliable earth connection for SWA, Mineral Insulated, and braided flexible cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Earthing Nut 32mm
Brand: Cabac
SKU: EN32
Alternatively Known As: Earthing Locknut, Brass Earthing Nut, Cable Gland Earthing Nut, Earth Locknut 32mm
Technical Specifications
- Material: Brass
- Size: 32mm
- Compatible with metal cable glands from 20mm to 75mm
- Provides a terminal for direct attachment of protective conductor
- Locks securely against gland thread with grub screw
- Tested to BS EN 50262
- Dimensions (H x L x W): 15mm x 32mm x 32mm
- Weight: 0.1 kg
Key Features
- Hexagon brass locknut with threaded holes for locking grub screws
- Quick fit earth for glands with SWA and EMC
- Secure and direct connection even when mechanically pulled
- Simple to use with one spanner fit
- Tested to BS EN 50262
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper earthing and compliance with electrical safety standards.
Applications
- Electrical installations requiring secure earthing of metal cable glands
- Use with SWA, Mineral Insulated, and braided flexible cables
- Suitable for metal glands fitted to thin walled or plastic enclosures
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables use of plastic enclosures by providing reliable earthing for metal glands, reducing metal enclosure usage
- Durable brass construction ensures long service life, reducing replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms.
Available Now
The Cabac Earthing Nut 32mm is available now for immediate purchase. Ideal for electrical installations requiring secure earthing of metal cable glands.
