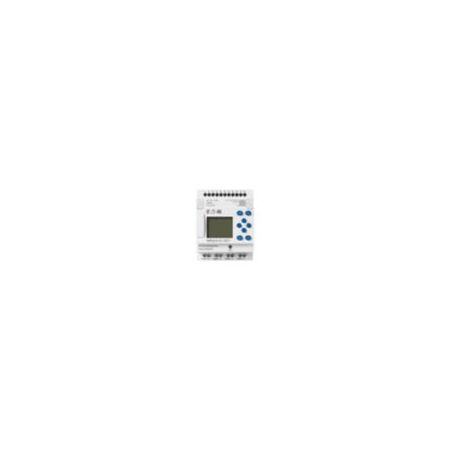

EASY Control Relay | 8 Digital Inputs | 4 Relay Outputs | Ethernet Connectivity | IP20 by Eaton
EASY Control Relay with 8 digital inputs and 4 relay outputs—ideal for industrial automation and building control systems. Built for networked applications, featuring Ethernet connectivity and a monochrome LCD display for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EASY Control Relay | 8 Digital Inputs | 4 Relay Outputs | Ethernet Connectivity | IP20 by Eaton
Brand: Eaton
SKU: Y7-197215
Alternatively Known As: EASY-E4 Control Relay, easyE4 Relay with Display, Eaton EASY Ethernet Relay, Moeller EASY Control Relay
Technical Specifications
- Power supply voltage: 100 - 240 V AC, 110 - 220 V DC
- Digital inputs: 8
- Relay outputs: 4, each > 500 mA
- Display: Monochrome LCD, 6 lines x 16 characters
- Degree of protection: IP20
- Operating temperature range: -25 °C to 55 °C
- Mounting: Screw fixing, rail mounting (IEC/EN 60715, 35 mm), wall or front build-in
- Communication protocol: TCP/IP MODBUS
- Input frequency: 50/60 Hz
- Rated operational voltage: max 300 V DC/AC
- Switching frequency: 10 Hz (general), 2 Hz (relay outputs resistive load), 0.5 Hz (inductive load)
- Insulation resistance and safety certifications: EN 61010, IEC/EN 61000 series, UL Listed
- Connection type: Screw terminal for power and inputs, RJ45 plug for Ethernet
- Cable type: CAT5 for Ethernet
- Accuracy: ±1% timing, ±2 s/day repetition accuracy
- Shock resistance: 15 g mechanical
- Vibration resistance: 2 g constant acceleration (57-150 Hz)
- Relative humidity: 5 - 95%
- Power consumption: 4 W
- Rated breaking capacity: 300,000 operations AC-15, 200,000 operations DC-13
- Dimensions (H x L x W): 90mm x 58mm x 72mm
- Weight: 0.25 kg
Key Features
- Expandable with Ethernet connectivity
- Monochrome LCD display with 6 lines x 16 characters
- 8 digital inputs and 4 relay outputs
- Real-time clock with ±0.5 h/year accuracy
- Networkable via TCP/IP MODBUS protocol
- Screw terminal and RJ45 Ethernet plug connection
- IP20 degree of protection
- Supports easySoft software for programming
- High mechanical lifespan of 1,000,000 operations
- Electrical lifespan of 25,000 operations under various loads
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe integration into control systems.
Applications
- Industrial automation control systems
- Machine control and monitoring
- Building automation
- Networked control applications requiring Ethernet connectivity
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 4 W reduces energy usage
- Long mechanical and electrical lifespan reduces waste and replacement frequency
- Supports networked control for efficient automation and energy management
Warranty Information
Eaton supports the product until its end of life with standard manufacturer warranty terms.
Available Now
The Eaton Moeller EASY Control Relay EASY-E4-AC-12RC1 is available for immediate purchase, ideal for industrial and building automation applications requiring reliable networked control.
