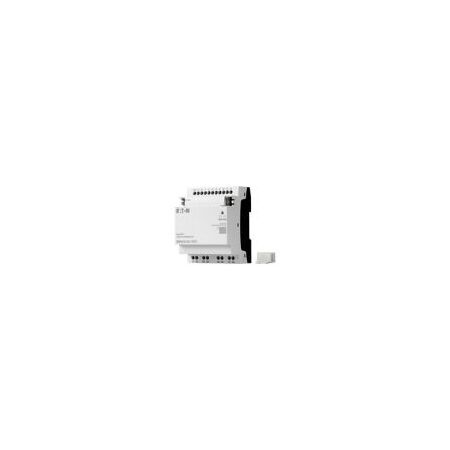

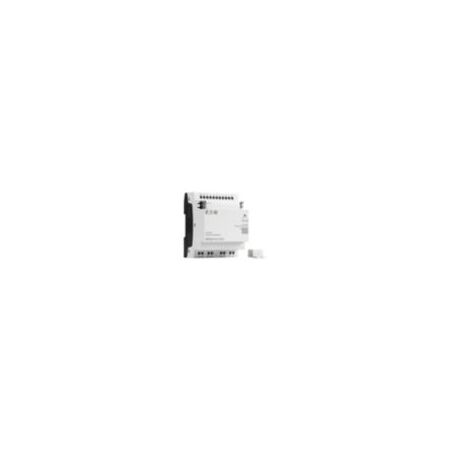

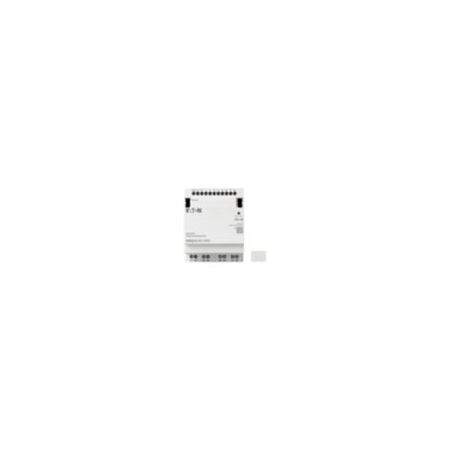

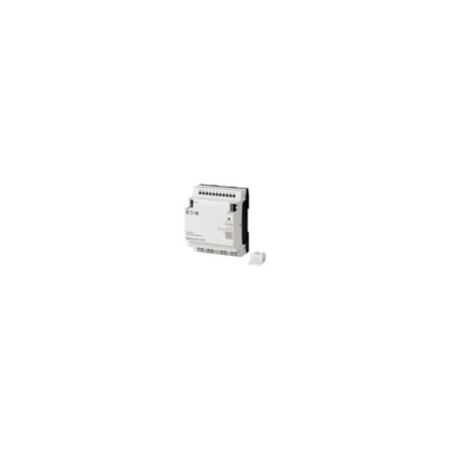

Product Name/Title: EASY I/O Expansion Module | 8 Digital Inputs & 8 Transistor Outputs | IP20 Protection | 24V DC by Eaton
Brand: Eaton
SKU: Y7-197220
Alternatively Known As: Eaton easyE4 I/O expansion, EASY I/O module, EASY-E4 digital input/output extension, Eaton Moeller expansion module
Technical Specifications
- Operating voltage: 20.4 - 28.8 V DC
- Number of digital inputs: 8
- Number of digital outputs: 8 transistor outputs
- Output current: 4 A max per transistor output
- Power consumption: 1 W
- Heat dissipation: 3.4 W at 24 V DC
- Degree of protection: IP20
- Mounting: Top-hat rail (IEC/EN 60715, 35 mm), screw fixing, wall mounting
- Operating temperature: -25 °C to 55 °C
- Shock resistance: 15 g, IEC/EN 60068-2-27
- Vibration resistance: IEC/EN 60068-2-6
- Communication protocol: TCP/IP MODBUS
- Terminal capacity: 0.2 - 2.5 mm² flexible, 0.2 - 4 mm² solid
- Short-circuit protection: ≥ 1A fuse for transistor outputs
- Residual current: 0.1 mA per channel on signal '1'
- Delay time: 0.2 ms typical for digital inputs
- Protection against polarity reversal: Yes
- Dimensions (H x L x W): 90mm x 58mm x 72mm
- Weight: 0.2 kg
Key Features
- 8 digital inputs and 8 transistor outputs
- 24 V DC operation voltage
- Screw terminal connection
- Parallel connection of transistor outputs with resistive and inductive loads
- Thermal cutout protection
- IP20 degree of protection
- Top-hat rail mounting and multiple mounting options
- Supports TCP/IP MODBUS protocol
- High shock and vibration resistance
- Wide ambient operating temperature range from -25 °C to 55 °C
Professional Installation Requirements
- Professional installation by a qualified electrician or automation technician is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation control systems
- Expansion of easyE4 programmable logic controllers
- Digital input and output extension for control panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 1 W reduces energy usage
- Durable design extends product life and reduces waste
- Supports efficient industrial automation to optimize resource use
Warranty Information
Standard Eaton warranty against manufacturing defects applies. Please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller EASY I/O expansion module EASY-E4-DC-16TE1 is available for immediate purchase. Ideal for industrial automation and control system expansions.
