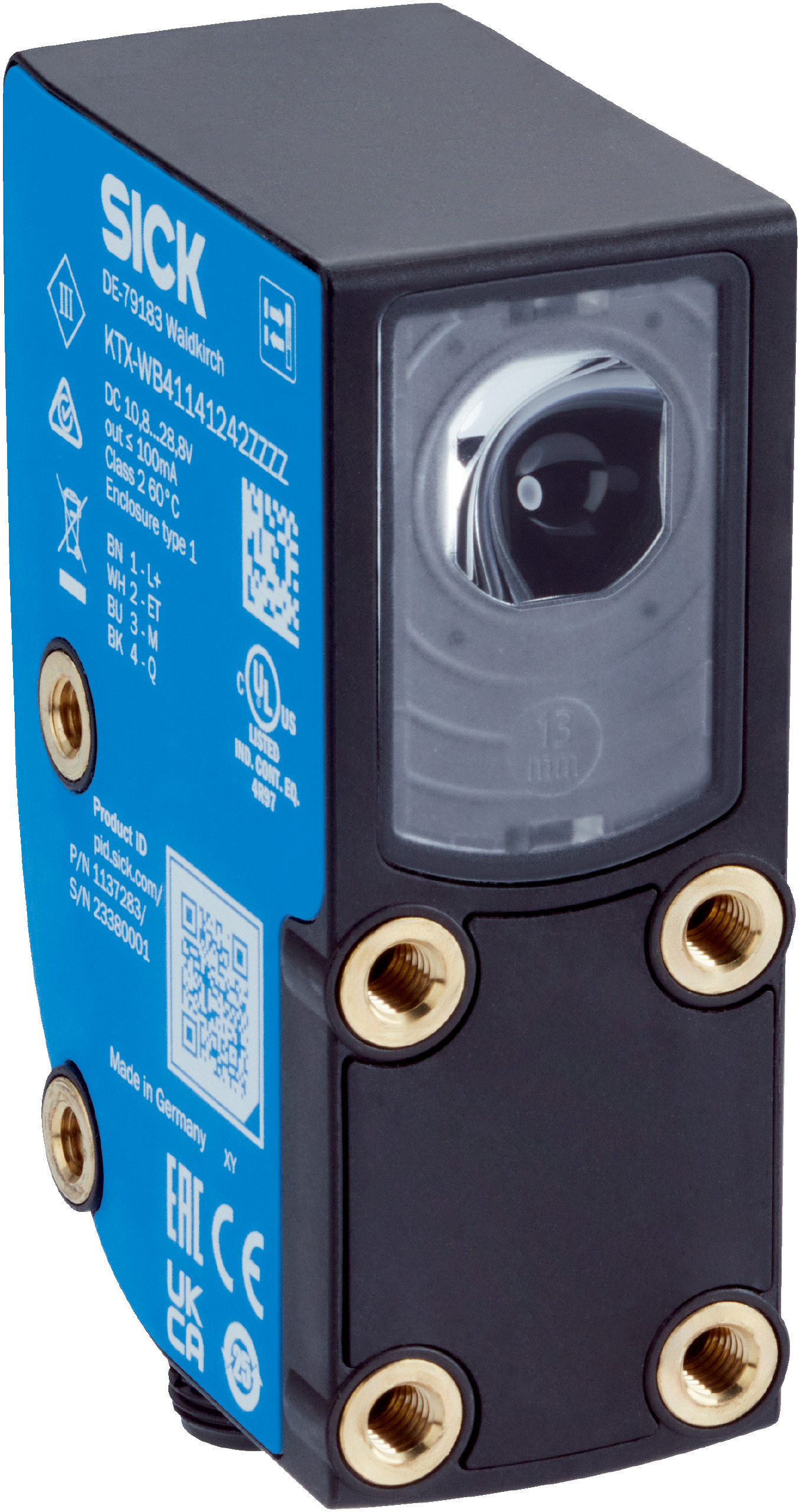

Easy Teach Proximity Sensor | RGB LED Light Source | IP67 Rated | by SICK
The Easy Teach Proximity Sensor is designed for industrial automation, featuring a robust IP67 rated housing and an RGB LED light source for precise object detection. With a sensing distance of up to 13 mm and a quick response time of 20 µs, this sensor is perfect for environments requiring reliable and easy teach-in functionality, ensuring optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 25 kHz
- Response time: 20 µs
- Jitter: 10 µs
- Output type: NPN, HIGH = VS, LOW ≤ 3 V
- Output current max: 100 mA
- Retention time: 35 ms, non-volatile memory
- Protection: UV connections, reverse polarity, short-circuit, interference pulse suppression
- Housing material: VISTAL®
- Optics material: COP
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Easy Teach device type with 2-point teach-in mode
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 13 mm with ±3 mm tolerance
- Light/dark switching output function with adjustable delay time
- NPN switching output with max 100 mA current
- Protection class III with reverse polarity and short-circuit protection
- Robust IP67 rated housing made of VISTAL®
- Operating temperature range from -20 °C to +60 °C
- Shock resistant according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Standard sensing applications requiring easy teach-in
- Environments needing robust IP67 rated sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable housing reduces waste by extending product lifespan
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from manufacturer.
Available Now

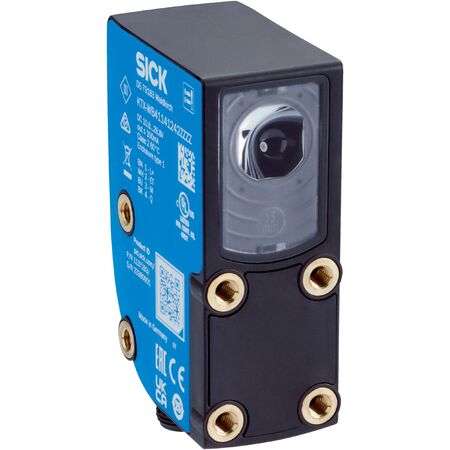

The SICK KTX-WN41141242ZZZZ Easy Teach Sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable and easy-to-configure sensors.
