Easy Teach Proximity Sensor | RGB LED Light Source | IP67 Rated | by SICK
The Easy Teach Proximity Sensor is designed for industrial automation, featuring a high switching frequency of 25 kHz and a fast response time of 20 µs. With an RGB LED light source and a sensing distance of up to 13 mm, it ensures precise detection in various applications. Built with a robust IP67 rated housing, this sensor is perfect for environments requiring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 25 kHz
- Response time: 20 µs
- Output: PNP and NPN switching outputs
- Output current max: 100 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light emission: Long side of housing
- Light spot size: 0.9 mm x 3.8 mm
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Housing material: VISTAL®
- Optics material: COP
- Connection: Male M12, 4-pin connector
- Safety parameters MTTFD: 291 years
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Easy Teach device type with 2-point teach-in mode
- Sensing distance up to 13 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with a small light spot size of 0.9 mm x 3.8 mm
- Adjustable delay time and light/dark switching output function
- High switching frequency of 25 kHz and fast response time of 20 µs
- Protection class III with reverse polarity and short-circuit protection
- Robust housing made of VISTAL® with COP optics and IP67 enclosure rating
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Standard sensing applications requiring precise detection
- Environments requiring robust IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V DC to 28.8 V DC
- Durable IP67 rated housing reduces waste by extending product lifespan
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

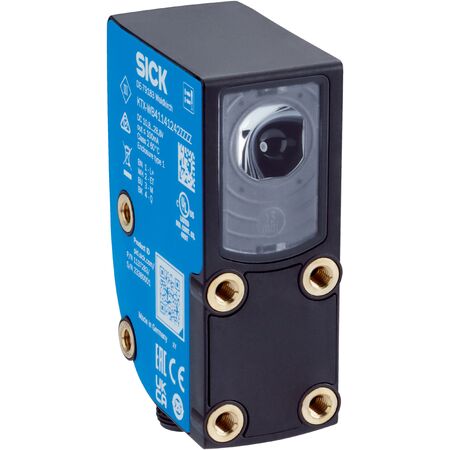

The SICK KTX-WS41141242ZZZZ Easy Teach Sensor is available for immediate purchase, ideal for industrial automation and standard sensing applications requiring reliable and precise detection.
