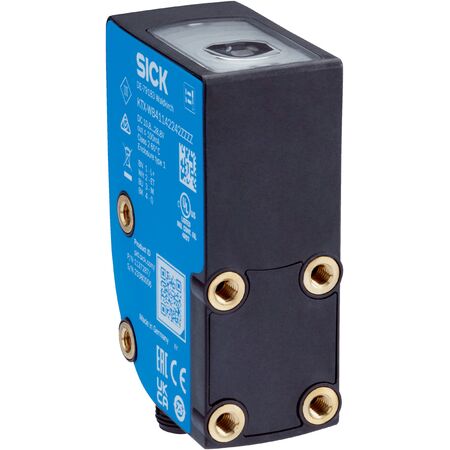

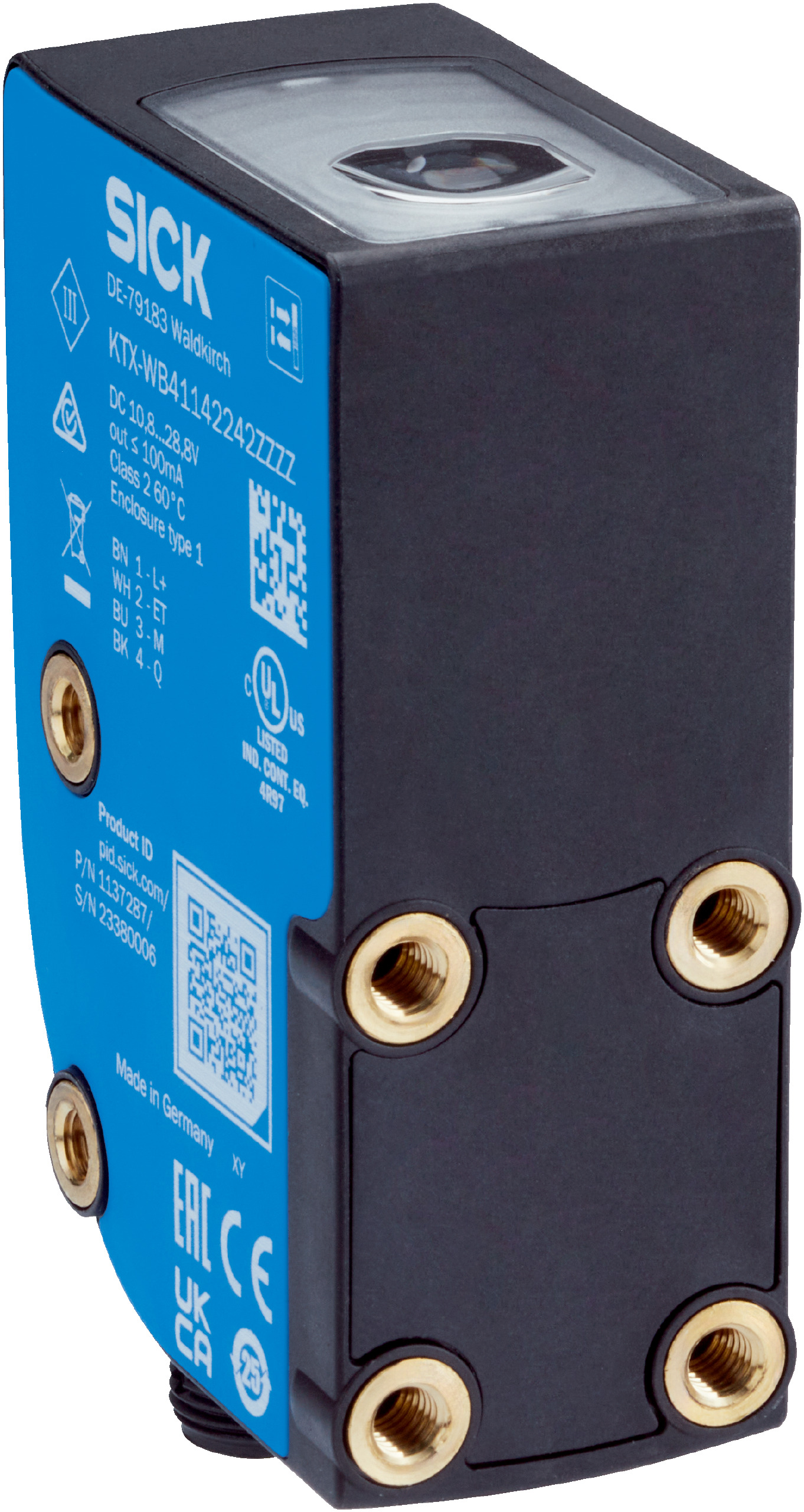

Easy Teach Proximity Sensor | RGB LED Light Source | IP67 Rated | by SICK
The Easy Teach Proximity Sensor is designed for industrial automation, featuring a robust RGB LED light source and an IP67 rated enclosure for dust and water protection. With a sensing distance of up to 13 mm and a quick response time of 20 µs, this sensor is perfect for applications requiring reliable object detection and easy teach-in functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 100 mA
- Switching frequency: 25 kHz
- Response time: 20 µs
- Jitter: 10 µs
- Output type: Push-pull PNP/NPN with HIGH = U V - 3 V, LOW ≤ 3 V
- Output current max: 100 mA
- Retention time: 35 ms non-volatile memory
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: VISTAL®
- Optics material: COP
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Easy Teach device type with 2-point teach-in mode
- Sensing distance up to 13 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Short device side light emission with vertical light spot direction
- Push-pull PNP/NPN switching output with 100 mA max current
- Adjustable delay time and light/dark switching output function
- Robust housing made of VISTAL® with COP optics
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +60 °C
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Standard sensing applications requiring easy teach-in
- Environments needing robust IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V DC to 28.8 V DC
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WB41142242ZZZZ Easy Teach Sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable and robust detection.
