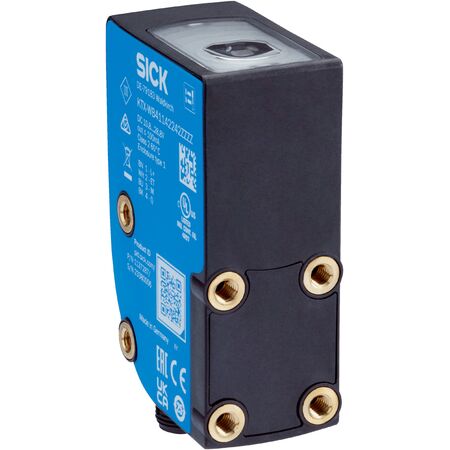

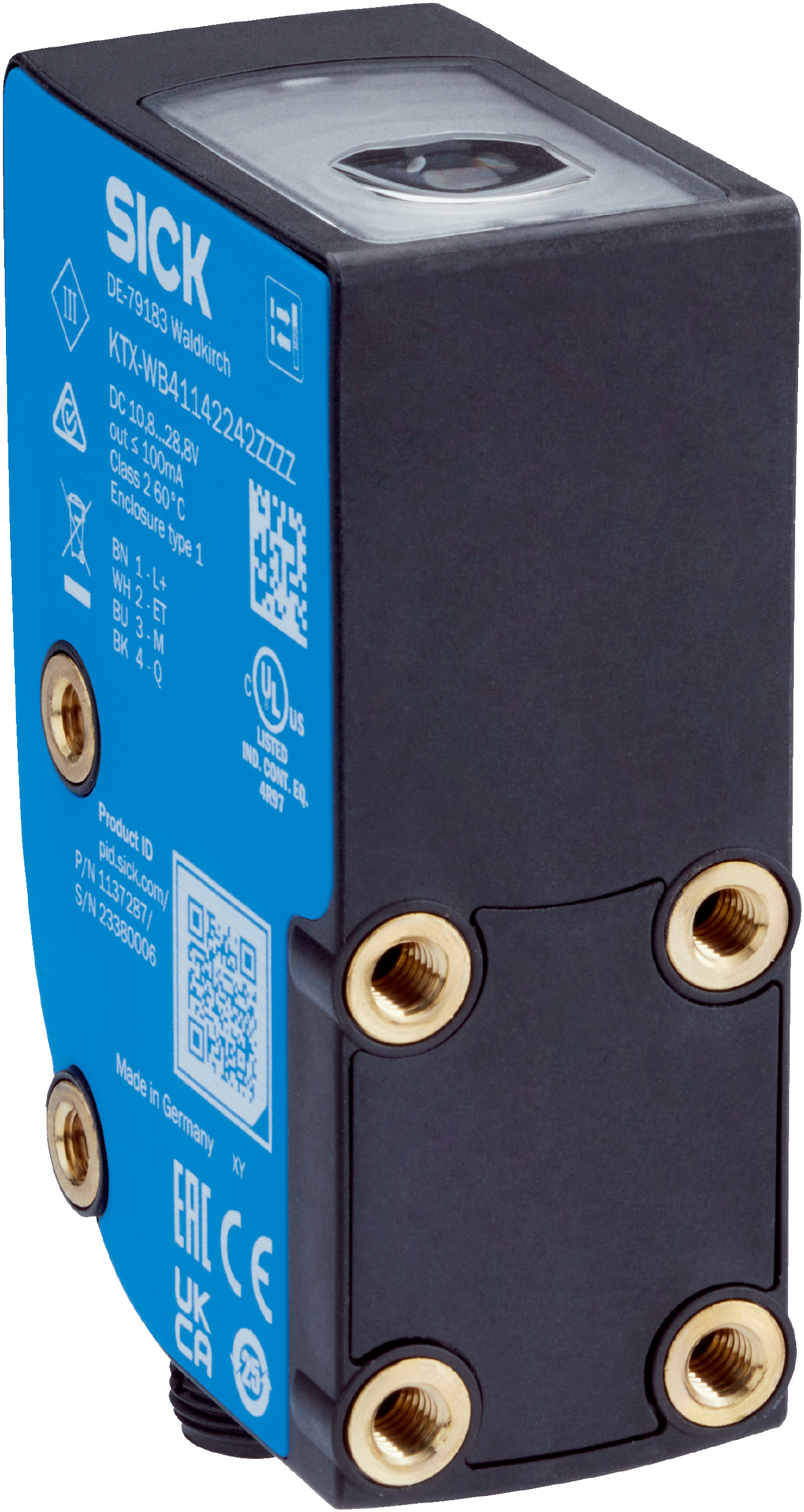

Easy Teach Sensor KTX-WN41142242ZZZZ | RGB LED Light Source | IP67 Rated | by SICK
The Easy Teach Sensor KTX-WN41142242ZZZZ is designed for industrial automation, featuring a precise RGB LED light source and a sensing distance of up to 13 mm. With an IP67 rating for dust and water resistance, this sensor is perfect for quality control and position sensing in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 25 kHz
- Response time: 20 µs
- Output type: NPN with max output current 100 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: 0.9 mm x 3.8 mm
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Shock resistance: 30 g / 11 ms
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Easy Teach device type with 2-point teach-in mode
- Sensing distance up to 13 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Short device side light emission with vertical light spot direction
- Adjustable delay time and light/dark switching output function
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
- Non-volatile memory with 35 ms retention time
- Male connector M12, 4-pin connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration according to industrial safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in machinery
- Standard sensing applications requiring precise detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Non-volatile memory reduces electronic waste by preserving settings
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WN41142242ZZZZ Easy Teach Sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable and precise detection.
