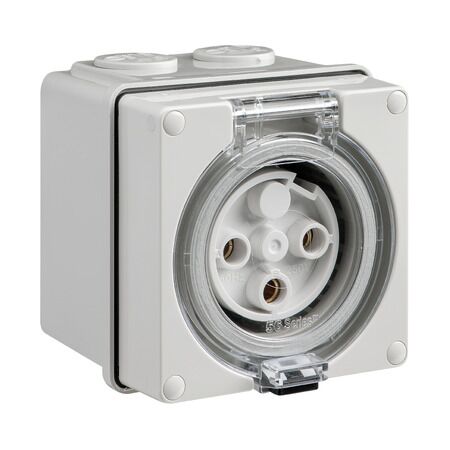

Easy56 Socket 3 Pin | 32A 250V | IP66 Surface Mount by Clipsal
Easy56 socket with 3 pins and 32A, 250V rating—ideal for industrial and small commercial applications. Built for durability, with IP66 protection and surface mount design for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Easy56, Socket, 3 Pin, 32A, 250V
Brand: Clipsal
SKU: EY56SO332
Alternatively Known As: Easy56 Socket, 32A Socket, Clipsal 3 Pin Socket
Technical Specifications
- Mounting mode: Surface mounted
- Pin number: 3 pins
- Connections: Screw terminals for 4-16 mm² rigid or stranded cable
- Wire stripping length: 16 mm
- Ambient air temperature for operation: -25 to 75 °C
- Network frequency: 50 Hz
- Poles description: 1P + N + E
- Outlet standard deviation: Australian/New Zealand
- Dimensions (H x L x W): 101mm x 101mm x 101mm
- Weight: 0.5 kg
Key Features
- Surface mounted design
- Rated current of 32A
- Rated operational voltage of 250V
- IP66 rated for protection against dust and water
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Small commercial and utility applications
Standards & Compliance
- Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and made with recycled materials.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Easy56 Socket, 3 Pin, 32A, 250V is available now for immediate purchase. Ideal for industrial and small commercial applications.
