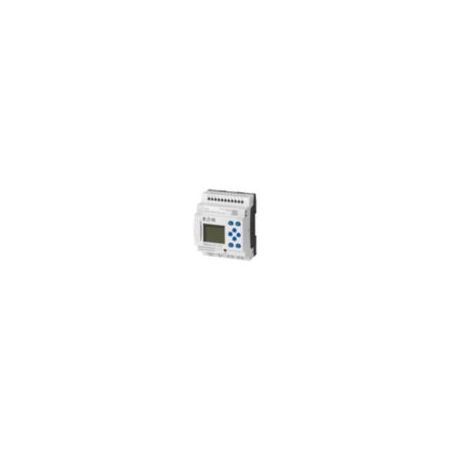

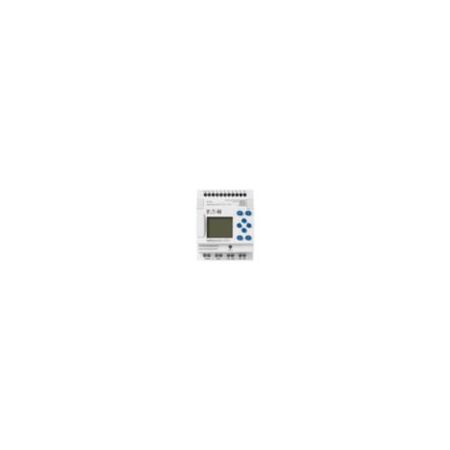

EASY-E4 Control Relay | 24V DC Power Supply | 8 Digital Inputs & Monochrome LCD | IP20 by Eaton
EASY-E4 Control Relay with 24V DC power supply and 8 digital inputs—ideal for industrial automation control systems. Built for machine control and monitoring, featuring a monochrome LCD display and Ethernet connectivity for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EASY-E4 Control Relay | 24V DC Power Supply | 8 Digital Inputs & Monochrome LCD | IP20 by Eaton
Brand: Eaton
SKU: Y7-197213
Alternatively Known As: Eaton easyE4 Control Relay, EASY-E4 Control Relay, EASY-E4-DC-12TC1 PLC Relay, Moeller EASY Control Relay
Technical Specifications
- Power supply: 24 V DC (-15%/+20%)
- Inputs: 8 digital inputs (4 usable as analog inputs)
- Outputs: 4 transistor outputs, max 2 A each
- Display: Monochrome LCD, 6 lines x 16 characters
- Degree of protection: IP20
- Communication: Ethernet RJ45, 10/100 MBit/s, TCP/IP MODBUS
- Operating temperature: -25 °C to 55 °C
- Shock resistance: 15 g, IEC/EN 60068-2-27
- Vibration resistance: 10-57 Hz at 0.15 mm amplitude, 57-150 Hz at 2 g acceleration
- Mounting: Screw fixing, top-hat rail (IEC/EN 60715, 35 mm), wall mounting possible
- Power consumption: 2 W
- Input voltage range: 20.4 - 28.8 V DC
- Residual current: 0.1 mA per channel
- Short-circuit protection: Fuse ≥ 1A (T), electronic for transistor outputs
- Pulse counter frequency: up to 5 kHz
- Display temperature range: 0 °C to 55 °C
- Dimensions (H x L x W): 90mm x 58mm x 72mm
- Weight: 0.2 kg
Key Features
- Expandable with Ethernet connectivity
- 8 digital inputs, 4 of which can be used as analog inputs
- Monochrome LCD display with 6 lines x 16 characters
- Parallel connection of transistor outputs with resistive and inductive load support
- Real-time clock with accuracy ±2 s/day
- Screw terminal connection
- IP20 degree of protection
- Supports TCP/IP MODBUS protocol
- High shock and vibration resistance
- Supports easySoft programming software
Professional Installation Requirements
- Professional installation by a qualified electrician or automation technician is recommended to ensure proper mounting, wiring, and configuration according to industrial standards.
Applications
- Industrial automation control systems
- Machine control and monitoring
- Process control in manufacturing
- Building automation systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 2 W reduces energy usage
- Durable design extends product life and reduces waste
- Supports efficient automation to optimize energy use in industrial processes
Warranty Information
Eaton supports the product until its end of life with standard manufacturer warranty terms.
Available Now
The Eaton Moeller EASY-E4-DC-12TC1 Control Relay is available for immediate purchase. Ideal for industrial automation and control system applications.
