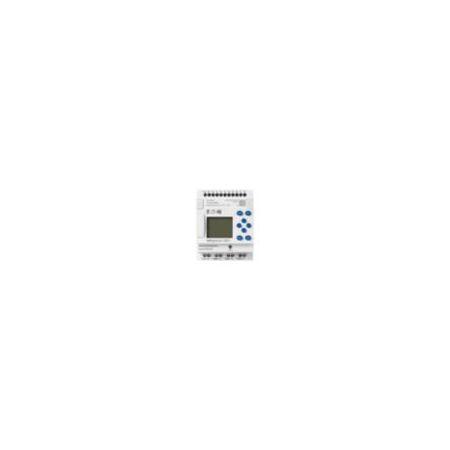

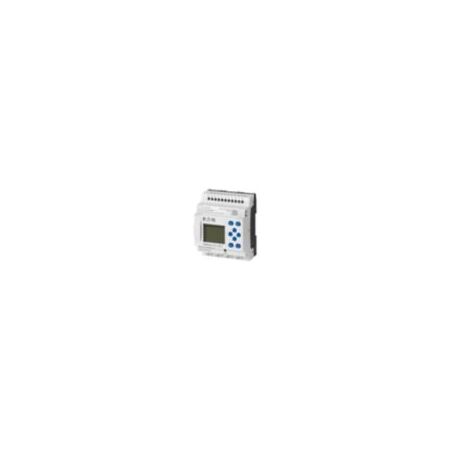

EASY-E4 Control Relay with Display | Expandable & Networkable | 8 Digital Inputs | 4 Relay Outputs | Eaton
EASY-E4 Control Relay with display offers 8 digital inputs and 4 relay outputs—ideal for industrial automation and machine control. Built for efficient system management, it features Ethernet connectivity and a real-time clock for precise operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EASY-E4 Control Relay with Display | Expandable & Networkable | 8 Digital Inputs | 4 Relay Outputs | Eaton
Brand: Eaton
SKU: Y7-197211
Alternatively Known As: Eaton easyE4 Control Relay, EASY-E4 Control Relay with Display, Moeller EASY-E4 Relay, Ethernet Control Relay Eaton
Technical Specifications
- Dimensions (H x L x W): 90mm x 58mm x 72mm
- Weight: 0.25 kg
Key Features
- Expandable with display indication of 6 lines x 16 characters
- Networkable via Ethernet with TCP/IP MODBUS protocol
- 8 digital inputs, 4 of which can be used as analog inputs
- 4 relay outputs with recommended load of 12 V AC/DC
- Real-time clock with ±2 seconds/day accuracy
- Monochrome LCD display for status indication
- Screw terminal connection with Ethernet RJ45 plug
- IP20 degree of protection
- Supports easySoft software for programming
- High mechanical lifespan of 10,000,000 operations
- Electrical lifespan of 25,000 operations under various loads
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Industrial automation control systems
- Machine control and monitoring
- Building automation
- Process control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 3 W reduces energy usage
- Durable design extends product life reducing waste
- Supports networked control for efficient system management
Warranty Information
Eaton supports the product until its end of life with compliance to relevant standards.
Available Now
The Eaton Moeller EASY-E4-UC-12RC1 Control Relay with Display is available now for immediate purchase. Ideal for industrial automation, machine control, and building management systems.
