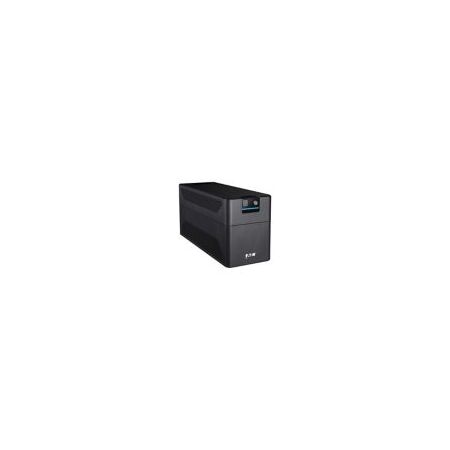

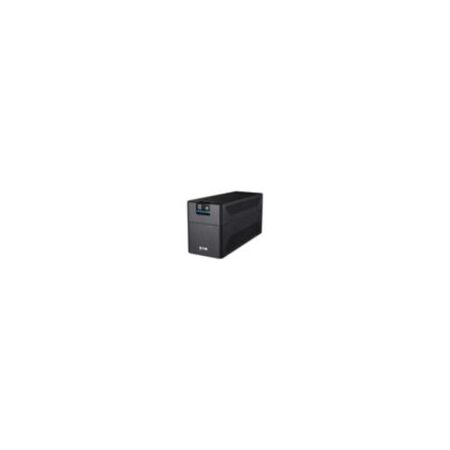

Eaton 5E UPS 1200VA | 660W Power Rating | Line-Interactive | Compact Tower Design by Eaton
Eaton 5E UPS 1200VA offers 660W power rating and line-interactive topology—ideal for protecting computers and networking equipment. Built for small offices and home environments, it features automatic voltage regulation and surge protection for reliable backup power.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton 5E UPS 1200VA | 660W Power Rating | Line-Interactive | Compact Tower Design by Eaton
Brand: Eaton
SKU: 9C00-63018
Alternatively Known As: Eaton 5E UPS 1200VA, Eaton 5E Gen2 UPS, Eaton 5E 1200VA UPS, Eaton UPS 660W, Eaton UPS with AU outlets
Technical Specifications
- Power Rating: 1200 VA / 660 W
- Input Voltage Range: 140-300 V
- Output Voltage Range: 195-257 V
- Input Frequency Range: 45-65 Hz
- Output Frequency: 50/60 Hz
- Battery Type: Sealed lead-acid, 12 V / 7 Ah (2 batteries)
- Topology: Line-interactive
- Form Factor: Tower
- Communication Interface: USB (HID compliant)
- Noise Level: <40 dB at 1 meter
- Operating Temperature: 0° to 40°C
- Surge Protection: Yes
- Auto Shutdown Function: Yes
- Battery Management: Automatic battery test, deep-discharge protection, cold-start capable
- Efficiency at Max Load: 95%
- Dimensions (H x L x W): 180mm x 330mm x 133mm
- Weight: 8.29 kg
Key Features
- Line-interactive topology for efficient power conditioning
- Automatic Voltage Regulation (AVR) to stabilize voltage fluctuations
- Compact tower design saves space
- HID-compliant USB port for automatic integration with Windows, Mac OS, and Linux
- Surge protection included
- Automatic battery test and deep-discharge protection
- Cold-start capable
- LED user interface for status indication
- Low noise level under 40 dB at 1 meter
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper UPS setup.
Applications
- Protects computers, servers, and networking equipment from power interruptions and surges
- Ideal for small offices, home offices, and IT environments requiring reliable backup power
- Suitable for use with sensitive electronic devices requiring clean and stable power
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient design with 95% efficiency at max load reduces power consumption
- Automatic battery management extends battery life and reduces waste
- RoHS and WEEE compliant, ensuring reduced environmental impact
Warranty Information
Standard Eaton warranty applies; typically 2 years against manufacturing defects.
Available Now
The Eaton 5E Gen2 UPS 1200VA/660W with 3 ANZ outlets is available now for immediate purchase. Ideal for protecting critical electronic equipment in office and home environments.
