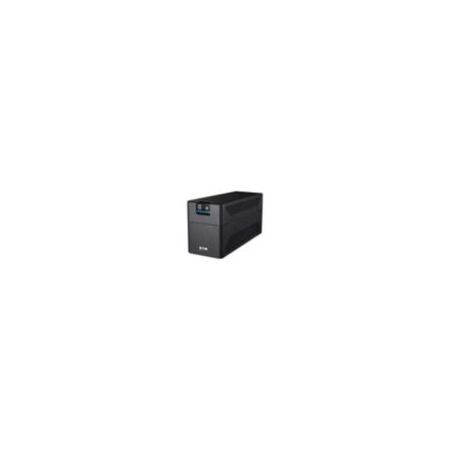

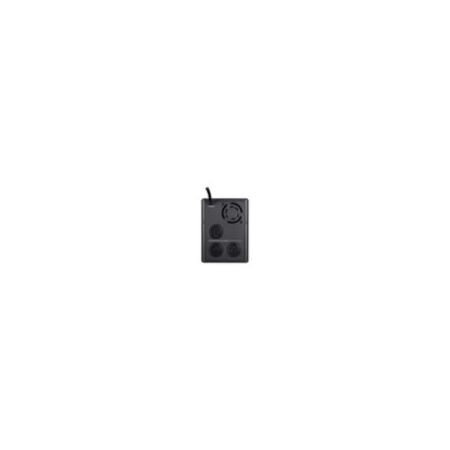

Eaton 5E UPS 2200VA | 1200W Power Rating | 3 ANZ Outlets | Compact Design by Eaton
Eaton 5E UPS 2200VA with 1200W power rating and 3 ANZ outlets—ideal for backup power in homes and offices. Built for reliable performance, featuring automatic voltage regulation and a compact tower design for space-saving.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton 5E UPS 2200VA | 1200W Power Rating | 3 ANZ Outlets | Compact Design by Eaton
Brand: Eaton
SKU: 9C00-83008
Alternatively Known As: Eaton 5E UPS 2200VA, Eaton 5E Gen2 UPS, Eaton 5E 2200VA UPS, Eaton 5E 1200W UPS
Technical Specifications
- Power Rating: 2200 VA / 1200 W
- Input Voltage Range: 140-300 V
- Output Voltage Range: 195-257 V
- Input Frequency Range: 45-65 Hz
- Output Frequency: 50/60 Hz
- Topology: Line-interactive
- Battery Type: Sealed lead-acid, 12 V / 9 Ah, 2 batteries
- Communication Interface: USB (HID compliant)
- Noise Level: <40 dB at 1 meter
- Operating Temperature: 0° to 40°C
- Relative Humidity: 0-85% non-condensing
- Surge Protection: Yes
- Form Factor: Tower
- Color: Black
- Dimensions (H x L x W): 180mm x 330mm x 133mm
- Weight: 9.8 kg
Key Features
- Automatic Voltage Regulation (AVR) for stable power output
- Compact tower design saves space
- HID-compliant USB port for automatic integration with Windows, Mac OS, and Linux
- Line-interactive topology
- Surge protection included
- Automatic battery test and deep-discharge protection
- Cold-start capable
- LED user interface for status indication
- Low noise level under 40 dB at 1 meter
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal UPS performance.
Applications
- Backup power supply for home and office computers
- Protection for network devices and telecommunications equipment
- Power backup for small servers and workstations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient design with 95% efficiency at max load reduces power waste
- Automatic battery management extends battery life and reduces waste
- RoHS and WEEE compliant, ensuring environmentally responsible manufacturing and disposal
Warranty Information
Standard Eaton warranty applies; typically 2 years against manufacturing defects.
Available Now
The Eaton 5E Gen2 UPS 2200VA/1200W with 3 ANZ outlets is available now for immediate purchase. Ideal for protecting critical electronic devices in residential and commercial environments.
