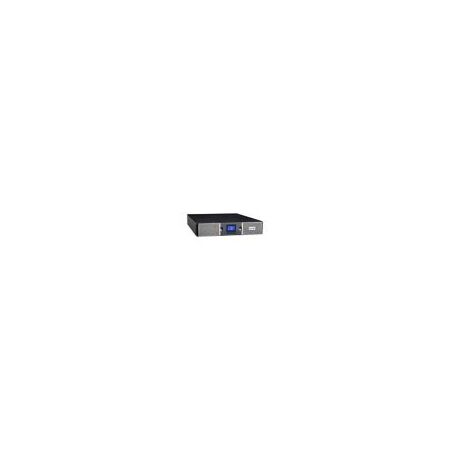

Eaton 9PX 1500VA Rack/Tower UPS | 1500W Power Capacity | Hot Swappable Battery | 8 IEC C13 Outputs by Eaton
Eaton 9PX 1500VA Rack/Tower UPS with 1500W power capacity and hot swappable sealed lead-acid battery—ideal for data centers and server rooms. Built for reliable power backup, featuring 8 IEC C13 outputs and low noise operation under 35 dB.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton 9PX 1500VA Rack/Tower UPS | 1500W Power Capacity | Hot Swappable Battery | 8 IEC C13 Outputs by Eaton
Brand: Eaton
SKU: 9103-63130EN1
Alternatively Known As: Eaton 9PX 1500VA UPS, Eaton 9PX 1500W UPS, Eaton 9PX Rack Tower UPS, Eaton 9PX 1500VA Power Supply
Technical Specifications
- Power Rating: 1500 VA / 1500 W
- Input Voltage: 240 V nominal, range 176-276 Vac without derating
- Output Voltage: 240 V nominal
- Output Frequency: 50/60 Hz
- Output Waveform: Sine wave
- Output Power Factor: 1.0
- Input Frequency Range: 40-70 Hz
- Battery Type: Sealed lead-acid, hot swappable
- Number of Output Receptacles: 8 x IEC C13
- Noise Level: <35 dB at 1 meter
- Operating Temperature: 0° to 40°C
- Relative Humidity: 0-96% non-condensing
- Form Factor: Rack/Tower 2U (482.6 mm 19 inch device)
- Internal Bypass: Yes
- Expansion Slots: One for optional communication card
- Software Compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
- Dimensions (H x L x W): 86.5mm x 440mm x 450mm
- Weight: 18.9 kg
Key Features
- Online/Double-conversion topology for consistent power quality
- 1500 VA / 1500 W power capacity with output power factor of 1.0
- Multilingual graphical LCD display for easy monitoring
- Hot swappable sealed lead-acid battery with extended battery capability
- Eight IEC C13 output receptacles
- Input voltage range 176-276 Vac without derating
- Internal bypass and auto shutdown function
- Low noise level under 35 dB at 1 meter
- Supports Eaton Intelligent Power Manager and Intelligent Power Protector software
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal UPS performance.
Applications
- Data centers and server rooms requiring reliable power backup
- Telecommunications equipment protection
- Industrial and commercial IT infrastructure
- Medical and laboratory equipment power protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High efficiency reduces energy consumption and operational costs
- Extended battery life reduces waste and replacement frequency
- Supports power management software to optimize energy use
Warranty Information
Standard Eaton warranty applies; typically 2-3 years depending on region and purchase terms.
Available Now
The Eaton 9PX 1500VA/1500W Rack/Tower UPS is available for immediate purchase, ideal for critical power protection in IT, industrial, and commercial environments.
