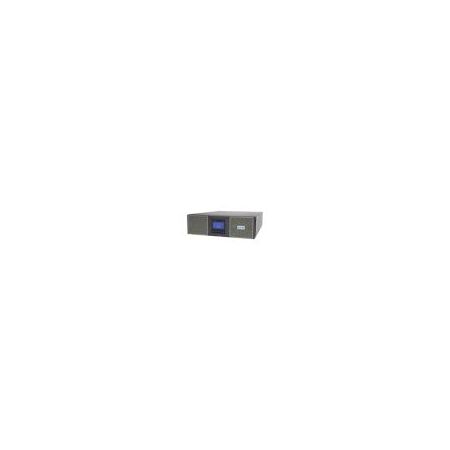

Eaton 9PX 2200VA UPS | 2200W Power Capacity | Online Double-Conversion | 3U Rack/Tower by Eaton
Eaton 9PX 2200VA UPS with 2200W power capacity and online double-conversion topology—ideal for data centers and critical IT infrastructure. Built for reliable power backup, featuring a multilingual LCD display and hot-swappable battery for extended use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton 9PX 2200VA UPS | 2200W Power Capacity | Online Double-Conversion | 3U Rack/Tower by Eaton
Brand: Eaton
SKU: 9103-73789EN1
Alternatively Known As: Eaton 9PX 2200VA UPS, Eaton 9PX 2200W UPS, Eaton 9PX Rack Tower UPS, Eaton 9PX 3U UPS
Technical Specifications
- Power Rating: 2200 VA / 2200 W
- Input Voltage Range: 176-276 Vac without derating, up to 100-276 Vac with derating
- Output Voltage: 240 V nominal
- Output Frequency: 50/60 Hz
- Output Waveform: Sine wave
- Power Factor: 1.0
- Battery Type: Sealed lead-acid, hot swappable
- Receptacles: IEC C13 x 8, IEC C19 x 2
- Noise Level: <40 dB at 1 meter
- Operating Temperature: 0° to 40°C
- Relative Humidity: 0-96% non-condensing
- Form Factor: 3U Rack/Tower
- Input Phase: Single-phase
- Output Phase: Single-phase
- Internal Bypass: Yes
- Auto Shutdown: Yes
- Expansion Slot: One for optional communication card
- Dimensions (H x L x W): 130mm x 440mm x 485mm
- Weight: 24.52 kg
Key Features
- Online/Double-conversion topology for consistent power quality
- 2200 VA / 2200 W power capacity with power factor 1.0
- Multilingual graphical LCD display for easy monitoring
- Hot swappable sealed lead-acid battery with extended battery capability
- Eight IEC C13 and two IEC C19 output receptacles
- Input voltage range 176-276 Vac without derating
- Internal bypass and auto shutdown function
- Low noise level under 40 dB at 1 meter
- Supports Eaton Intelligent Power Manager and Intelligent Power Protector software
Professional Installation Requirements
- Professional installation by a qualified electrician or UPS specialist is recommended to ensure proper setup, electrical safety, and compliance with local regulations.
Applications
- Data centers and server rooms requiring reliable power backup
- Telecommunications equipment protection
- Industrial and commercial IT infrastructure
- Medical and laboratory equipment requiring clean power
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient design reduces power consumption and operational costs
- Extended battery life reduces waste and replacement frequency
- Supports power management software to optimize energy use
Warranty Information
Standard Eaton warranty applies; typically 2-3 years depending on region and purchase terms.
Available Now
The Eaton 9PX 2200VA/2200W 3U Rack/Tower UPS with 16Amp Input is available for immediate purchase, ideal for critical IT infrastructure and industrial power protection.
