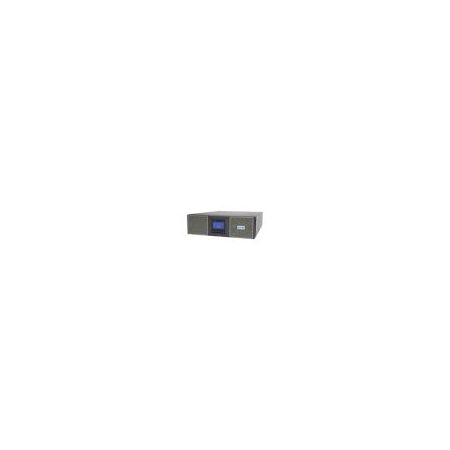

Eaton 9PX 3000VA UPS | Online Double-Conversion | Hot Swappable Battery | Low Noise by Eaton
Eaton 9PX 3000VA UPS with online double-conversion topology and hot swappable sealed lead-acid battery—ideal for data centers and telecommunications. Built for critical power protection, it features a multilingual LCD display and operates quietly under 40 dB.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton 9PX 3000VA UPS | Online Double-Conversion | Hot Swappable Battery | Low Noise by Eaton
Brand: Eaton
SKU: 9103-83805EN1
Alternatively Known As: Eaton 9PX 3000VA UPS, Eaton 9PX 3000W UPS, Eaton 9PX Rack Tower UPS, Eaton 9PX 3kVA UPS
Technical Specifications
- Power Rating: 3000 W / 3000 VA
- Input Voltage Range: 176-276 Vac without derating, 100-276 Vac with derating
- Output Voltage: 240 V
- Output Frequency: 50/60 Hz
- Output Waveform: Sine wave
- Output Power Factor: 1.0
- Battery Type: Sealed, lead-acid, hot swappable
- Receptacles: IEC C13 x 8, IEC C19 x 2
- Noise Level: <40 dB at 1 meter
- Operating Temperature: 0° to 40°C
- Relative Humidity: 0-96% non-condensing
- Form Factor: Rack/tower (482.6 mm 24 inch device)
- Phase: Single-phase input and output
- Internal Bypass: Yes
- Expansion Slots: One slot for optional communication card
- Software Compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
- Dimensions (H x L x W): 130mm x 440mm x 485mm
- Weight: 27.41 kg
Key Features
- Online/Double-conversion topology for consistent power quality
- Multilingual graphical LCD display for easy monitoring
- Hot swappable sealed lead-acid battery
- Supports extended battery capability
- Single-phase input and output
- Internal bypass for maintenance without power interruption
- Auto shutdown function for safe power off
- Low noise level under 40 dB at 1 meter
Professional Installation Requirements
- Professional installation by a qualified electrician or certified UPS technician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Data centers and server rooms
- Telecommunications equipment
- Medical and laboratory equipment
- Industrial and commercial power protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient design reduces power consumption
- Extended battery life reduces waste and replacement frequency
Warranty Information
Standard Eaton warranty applies; refer to Eaton for specific warranty terms and conditions.
Available Now
The Eaton 9PX 3000VA/3000W UPS Rack/Tower is available now for immediate purchase. Ideal for critical power protection in data centers, telecommunications, and industrial applications.
