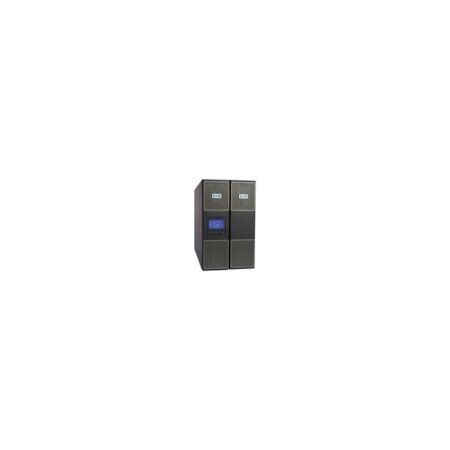

Eaton 9PX EBM 240V | 20 Sealed Lead-Acid Batteries | Rack/Tower Form Factor | UPS Battery Expansion by Eaton
Eaton 9PX EBM 240V extended battery module features 20 sealed lead-acid batteries rated at 12 V / 9 Ah, designed for rack or tower installation. Ideal for extending backup power in critical UPS applications, it ensures maintenance-free operation and includes essential installation accessories.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton 9PX EBM 240V | 20 Sealed Lead-Acid Batteries | Rack/Tower Form Factor | UPS Battery Expansion by Eaton
Brand: Eaton
SKU: 9000-00046
Alternatively Known As: Eaton 9PX Extended Battery Module, Eaton 9PX EBM 240V, UPS Battery Expansion Module
Technical Specifications
- Battery quantity: 20
- Battery rating: 12 V / 9 Ah
- Battery type: Sealed, lead-acid
- Form factor: Rack/tower, 3U height
- Rack size: 482.6 mm (19 inch) device
- Feed type: 2
- Package contents: Extended battery module (EBM), EBM power cable, EBM detection cable, link plate, quickstart guide, safety instructions
- Certifications: IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
- Compliances: CE Marked, TUV
- Dimensions (H x L x W): 440mm x 130mm x 680mm
- Weight: 65 kg
Key Features
- Sealed lead-acid battery type for maintenance-free operation
- 20 batteries rated at 12 V / 9 Ah each
- Form factor suitable for rack or tower installation (3U height)
- Includes EBM power cable, detection cable, link plate, quickstart guide, and safety instructions
- Designed for use with Eaton 9PX UPS models 8/11 kVA and 6/8/11 kVA 3:1 UPM
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with Eaton 9PX UPS systems and compliance with safety standards.
Applications
- Backup power extension for Eaton 9PX 8/11kVA 1:1 UPS systems
- Backup power extension for Eaton 9PX 6/8/11kVA 3:1 UPM UPS systems
- Rack or tower UPS battery expansion in data centers and critical power environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Sealed lead-acid batteries are recyclable and designed for safe disposal
- Extends UPS runtime reducing the need for additional power sources
Warranty Information
Standard Eaton warranty applies; refer to Eaton product documentation for details.
Available Now
The Eaton 9PX EBM 240V extended battery module is available for immediate purchase, ideal for extending backup power in critical UPS applications.
