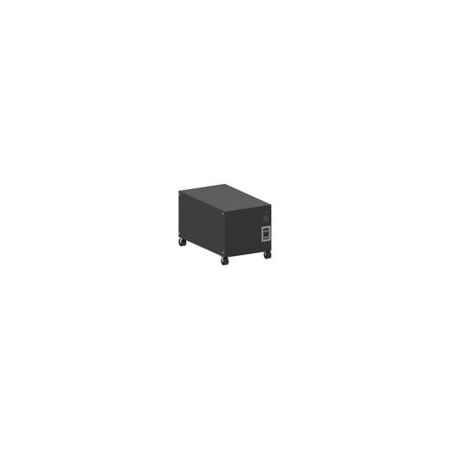

Eaton 9SX Extended Battery Cabinet | 1-Tier Stackable | 8 x 110W Batteries | Free Standing by Eaton
Eaton 9SX Extended Battery Cabinet with a 1-tier stackable design and 8 maintenance-free lead-acid batteries—ideal for data centers and server rooms needing reliable power backup. Built for industrial and commercial environments, it ensures uninterrupted power supply with a hardwired connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton 9SX Extended Battery Cabinet | 1-Tier Stackable | 8 x 110W Batteries | Free Standing by Eaton
Brand: Eaton
SKU: 9SXEBC110W96
Alternatively Known As: Eaton 9SX Extended Battery Cabinet, Eaton 9SX External Battery Enclosure, Eaton 9SX Battery Pack
Technical Specifications
- Product Name: Eaton 9SX Extended Battery Enclosure 1-Tier Stackable
- Battery Quantity: 8
- Battery Type: Lead-acid maintenance-free (replaceable)
- Battery Rating: 110W per battery block
- Input Connection: Hardwired/fixed connection
- Construction Type: Free standing model
- Altitude Operating Range: 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- Communication: None
- Potential Free Switch Contact: No
- Auto Shutdown Function: No
- Dimensions (H x L x W): 427mm x 740mm x 425mm
- Weight: 142 kg
Key Features
- Free standing model with 1-tier stackable design
- Contains 8 lead-acid maintenance-free (replaceable) batteries
- Hardwired/fixed input connection
- Battery rating of 110W per battery block
- Designed for altitudes 0-1500m at 0° to 40°C and 1500-3000m at 0° to 35°C
Professional Installation Requirements
- Professional installation by qualified technicians is required due to hardwired connections and battery handling.
Applications
- Used with Eaton 9SX UPS systems for extended battery backup
- Data centers and server rooms requiring reliable power backup
- Industrial and commercial environments needing uninterrupted power supply
Standards & Compliance
- Contact Manufacturer for specific AS/NZS compliance
Environmental Benefits
- Maintenance-free lead-acid batteries reduce hazardous waste and simplify recycling
- Supports energy-efficient UPS operation by extending backup time
Warranty Information
1 Year standard factory warranty.
Available Now
The Eaton 9SX Tower 2/3kVA Extended Battery Enclosure 1-Tier Stackable is available now for immediate purchase. Ideal for extending backup power in critical UPS applications.
