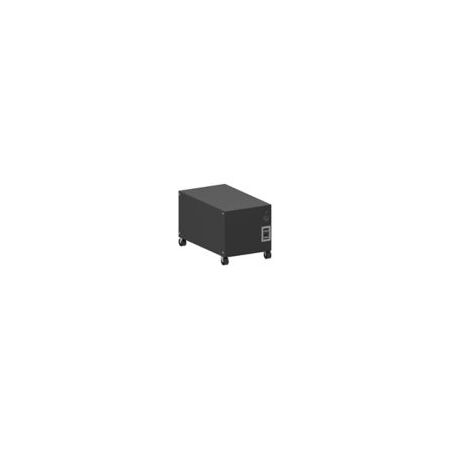

Eaton 9SX Extended Battery Cabinet | 1-Tier Stackable | 8 x 150W Batteries | Black by Eaton
Eaton 9SX Extended Battery Cabinet with a 1-tier stackable design and 8 maintenance-free lead-acid batteries—ideal for extending backup power in commercial and industrial UPS applications. Built for secure installation with hardwired connection, ensuring reliable power supply in data centers and server rooms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton 9SX Extended Battery Cabinet | 1-Tier Stackable | 8 x 150W Batteries | Black by Eaton
Brand: Eaton
SKU: 9SXEBC150W96
Alternatively Known As: Eaton 9SX Extended Battery Cabinet, Eaton 9SX External Battery Enclosure, Eaton UPS Battery Extension
Technical Specifications
- Product Name: Eaton 9SX Extended Battery Enclosure 1-Tier Stackable
- Battery Quantity: 8
- Battery Type: Lead-acid maintenance-free (replaceable)
- Battery Rating: 150W per battery block
- Input Connection: Hardwired/fixed connection
- Construction Type: Free standing model
- Color: Black
- Altitude Operating Range: 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- Auto Shutdown Function: No
- Communication: None
- Potential Free Switch Contact: No
- Dimensions (H x L x W): 427mm x 740mm x 425mm
- Weight: 150 kg
Key Features
- Free standing model with 1-tier stackable design
- Includes 8 x PWHR12150W4FR lead-acid maintenance-free replaceable batteries
- Hardwired/fixed input connection for secure installation
- Battery rating of 150W per battery block
- Designed for altitudes 0-1500m at 0° to 40°C and 1500-3000m at 0° to 35°C
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper integration with Eaton 9SX UPS systems and safe electrical connections.
Applications
- Used with Eaton 9SX UPS systems for extended battery backup
- Data centers and server rooms requiring reliable power backup
- Industrial and commercial environments needing uninterrupted power supply
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Maintenance-free lead-acid batteries reduce hazardous waste and environmental impact
- Designed for efficient power backup to minimize energy loss during outages
Warranty Information
1 Year standard factory warranty.
Available Now
The Eaton 9SX Tower 2/3kVA Extended Battery Enclosure 1-Tier Cabinet with 8 x PWHR12150W4FR batteries is available now for immediate purchase. Ideal for extending backup power in commercial and industrial UPS applications.
