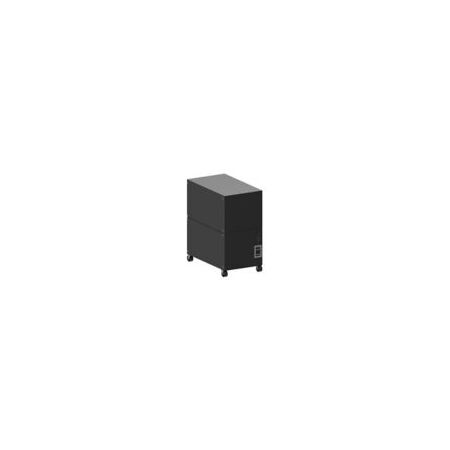

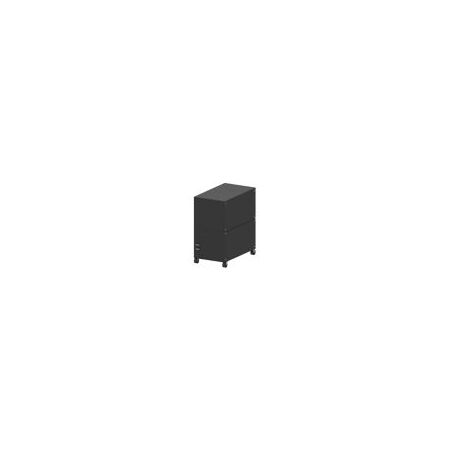

Eaton 9SX Extended Battery Cabinet | 2-Tier Design | 8 x 280W Lead-Acid Batteries | Free Standing by Eaton
Eaton 9SX Extended Battery Cabinet with a 2-tier design and 8 lead-acid maintenance-free batteries—ideal for extending backup power in UPS systems. Built for commercial and industrial environments, it ensures reliable power supply with a hardwired connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton 9SX Extended Battery Cabinet | 2-Tier Design | 8 x 280W Lead-Acid Batteries | Free Standing by Eaton
Brand: Eaton
SKU: 9SXEBC280W96
Alternatively Known As: Eaton 9SX Extended Battery Cabinet, Eaton 9SX External Battery Enclosure, Eaton 9SX Battery Expansion Cabinet
Technical Specifications
- Product Type: Battery/accumulator accessory
- Battery Quantity: 8
- Battery Type: Lead-acid maintenance-free (replaceable)
- Battery Rating: 280W per battery
- Construction Type: Free standing model
- Input Connection: Hardwired/fixed connection
- Battery Form Factor: Block
- Communication: None
- Potential Free Switch Contact: No
- Auto Shutdown Function: No
- Altitude Operating Range: 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- Dimensions (H x L x W): 747mm x 740mm x 425mm
- Weight: 235 kg
Key Features
- Free standing 2-tier stackable battery enclosure
- Houses 8 lead-acid maintenance-free replaceable batteries
- Hardwired/fixed input connection
- Compatible with Eaton 9SX UPS systems
- Designed for altitudes 0-1500m at 0° to 40°C and 1500-3000m at 0° to 35°C
Professional Installation Requirements
- Professional installation by qualified technicians is required due to hardwired connections and battery handling.
Applications
- Used with Eaton 9SX UPS systems for extended battery backup
- Data centers and server rooms requiring reliable power backup
- Industrial and commercial environments needing uninterrupted power supply
Standards & Compliance
- Contact Manufacturer for specific AS/NZS compliance
Environmental Benefits
- Maintenance-free lead-acid batteries reduce hazardous waste and environmental impact
- Designed for efficient power backup to reduce energy waste during outages
Warranty Information
1 Year standard factory warranty.
Available Now
The Eaton 9SX Tower 2/3kVA Extended Battery Enclosure 2-Tier Cabinet with 8 x PWHR12280W4FR batteries is available now for immediate purchase. Ideal for extending backup power in UPS systems in commercial and industrial settings.
