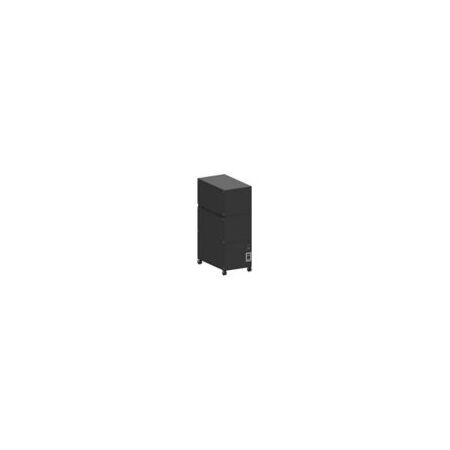

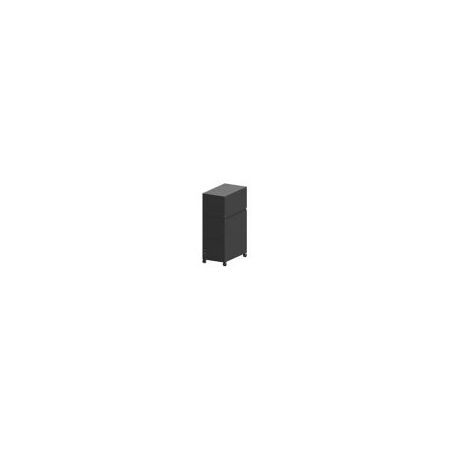

Eaton 9SX Extended Battery Enclosure | 6kVA Capacity | 3-Tier Stackable | 20 x 150W Batteries | Black by Eaton
Eaton 9SX Extended Battery Enclosure with 6kVA capacity and 3-tier stackable design—ideal for data centers and critical power applications. Built for use with Eaton 9SX UPS systems, it houses 20 maintenance-free lead-acid batteries for reliable backup power.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton 9SX Extended Battery Enclosure | 6kVA Capacity | 3-Tier Stackable | 20 x 150W Batteries | Black by Eaton
Brand: Eaton
SKU: 9SXEBC150W240
Alternatively Known As: Eaton 9SX Extended Battery Cabinet, Eaton 9SX External Battery Enclosure, Eaton 9SX Battery Pack 6kVA
Technical Specifications
- Product Name: Eaton 9SX Extended Battery Enclosure 3-Tier Stackable
- Battery Quantity: 20
- Battery Type: Lead-acid maintenance-free (replaceable)
- Battery Rating: 150W per battery
- Input Connection: Hardwired/fixed connection
- Construction Type: Free standing model
- Color: Black
- Auto Shutdown Function: No
- Battery Management: No
- Communication: None
- Potential Free Switch Contact: No
- Altitude Operating Range: 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- Dimensions (H x L x W): 1067mm x 740mm x 425mm
- Weight: 352 kg
Key Features
- Free standing 3-tier stackable battery enclosure
- Houses 20 lead-acid maintenance-free replaceable batteries
- Hardwired/fixed input connection
- Designed for use with Eaton 9SX UPS
- No auto shutdown or battery management features
Professional Installation Requirements
- Professional installation by qualified technicians is required due to hardwired connections and battery handling.
Applications
- Used with Eaton 9SX UPS systems for extended battery backup
- Suitable for data centers, server rooms, and critical power applications
Standards & Compliance
- Contact Manufacturer for specific AS/NZS compliance
Environmental Benefits
- Maintenance-free lead-acid batteries reduce hazardous waste and simplify disposal
- Supports energy-efficient UPS operation by providing extended runtime
Warranty Information
1 Year standard factory warranty.
Available Now
The Eaton 9SX Tower 6kVA Extended Battery Enclosure 3-Tier Stackable is available now for immediate purchase. Ideal for extending backup power in critical UPS applications.
