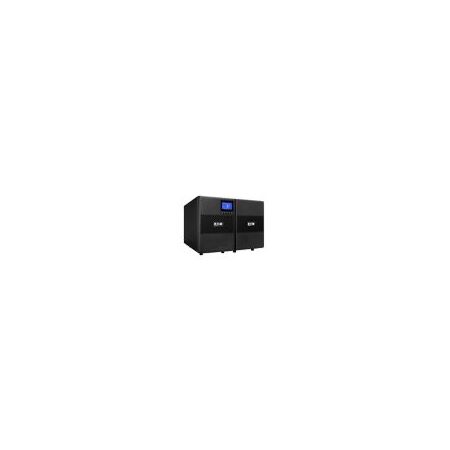

Eaton 9SX Tower EBM 96V | 2kVA & 3kVA | Sealed Lead-Acid Batteries | Free Standing Design by Eaton
Eaton 9SX Tower EBM 96V is an extended battery module designed to enhance runtime for Eaton 9SX UPS systems. Featuring sealed lead-acid batteries and a free-standing tower design, it's ideal for data centers and critical IT infrastructure requiring reliable backup power.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton 9SX Tower EBM 96V | 2kVA & 3kVA | Sealed Lead-Acid Batteries | Free Standing Design by Eaton
Brand: Eaton
SKU: 9000-00354
Alternatively Known As: Eaton 9SX Extended Battery Module, Eaton 9SX EBM 96V, UPS Battery Pack, Eaton UPS Battery Extension
Technical Specifications
- Battery Type: Sealed, lead-acid
- Battery Quantity: 16
- Battery Rating: 12 V / 9 Ah
- Form Factor: Tower, free standing
- Compatible UPS Models: 9SX2000I, 9SX3000I, 9SX3000IM, 9SX3000INB
- Product Dimensions (WxHxD): 214 mm x 346 mm x 412 mm
- Product Weight: 48.7 kg
- Certifications: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC
- Compliances: CE Marked, TUV, cULus Listed, CSA 22.2, FCC part 15 Class B, CISPR22 Class B
- Dimensions (H x L x W): 346mm x 412mm x 214mm
- Weight: 48.7 kg
Key Features
- Extended battery module (EBM) designed to increase runtime of Eaton 9SX UPS systems
- Sealed lead-acid batteries for maintenance-free operation
- 16 batteries rated at 12 V / 9 Ah each
- Free standing tower form factor for flexible placement
- Includes EBM power cable, detection cable, and quickstart guide
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper integration with Eaton 9SX UPS systems and compliance with electrical safety standards.
Applications
- Backup power supply for Eaton 9SX UPS models including 9SX2000I, 9SX3000I, 9SX3000IM, 9SX3000INB
- Data centers, server rooms, and critical IT infrastructure requiring extended battery runtime
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Sealed lead-acid batteries are recyclable and designed for safe disposal
- Extends UPS runtime reducing the need for additional power generators, lowering carbon footprint
Warranty Information
Warranty terms as per Eaton standard warranty policy for battery modules; typically 1-3 years depending on region and usage.
Available Now
The Eaton 9SX Tower EBM 96V Extended Battery Module is available now for immediate purchase. Ideal for extending backup power duration in critical IT and data center applications.
