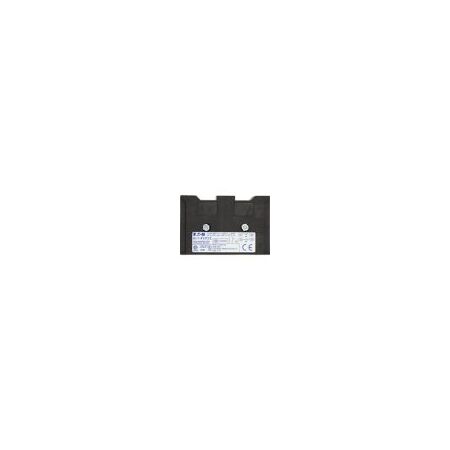

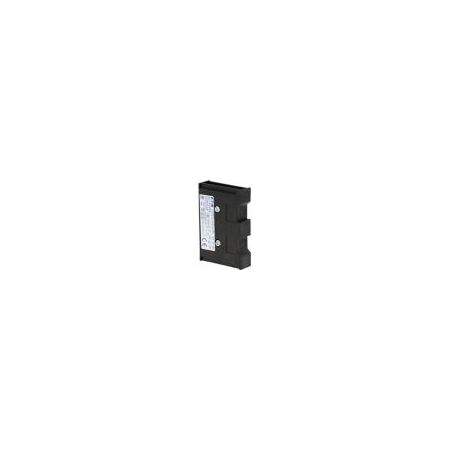

Eaton Auxiliary Contact HI11-P1/P3E | 6A Rated Current | Side Mounting | Compact Design by Eaton
Eaton Auxiliary Contact HI11-P1/P3E features a 6A rated operational current and side mounting design—ideal for industrial control panels. Built for reliable electrical automation, it ensures high control circuit reliability with minimal failure rates.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton Auxiliary Contact HI11-P1/P3E | 6A Rated Current | Side Mounting | Compact Design by Eaton
Brand: Eaton
SKU: Y7-61813
Alternatively Known As: Eaton Auxiliary Contact HI11-P1/P3E, P1 Auxiliary Contact, P3 Auxiliary Contact, Eaton Moeller Auxiliary Contact
Technical Specifications
- Product Length/Depth: 41 mm
- Product Height: 83 mm
- Product Width: 15 mm
- Rated insulation voltage (Ui): 500 V
- Rated operational current (Ie): 6 A at AC-15 (220-240 V), 0.55 A at DC-13 (250 V), 1.1 A at DC-13 (125 V)
- Rated uninterrupted current (Iu): 10 A
- Short-circuit protection rating: Max. 10 A gG/gL fuse
- Terminal capacity (flexible with ferrule): 1 x (0.5 - 1.5) mm², 2 x (0.5 - 1.5) mm²
- Terminal capacity (solid): 2 x (0.75 - 1.5) mm², 1 x (0.75 - 2.5) mm²
- Stripping length (main cable): 7.5 mm
- Tightening torque: 1 Nm
- Control circuit reliability: 1 failure per 100,000 switching operations at 24 V DC, 10 mA
- Ambient operating temperature: -25 °C to 50 °C
- Mounting method: Side mounting
- Connection type: Screw connection
- Dimensions (H x L x W): 83mm x 41mm x 15mm
- Weight: 0.04 kg
Key Features
- 1 Normally Open (N/O) and 1 Normally Closed (N/C) contact
- Screw connection type for secure wiring
- Side mounting with top mounting model
- Rated operational current: 6 A at AC-15 (220-240 V), 0.55 A at DC-13 (250 V)
- Ambient operating temperature range: -25 °C to 50 °C
- High control circuit reliability with 1 failure per 100,000 switching operations
- Compact size with 41 mm depth, 83 mm height, and 15 mm width
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Use with Eaton Moeller P1 and P3 series contactors
- Auxiliary switching in industrial control panels
- Electrical control and automation systems requiring auxiliary contacts
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption auxiliary switching component
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller® series P1 Auxiliary Contact HI11-P1/P3E is available for immediate purchase, ideal for industrial and commercial electrical control applications.
