Eaton Changeover Mechanism | 1-0-2 Switch Type | -25°C to 55°C Operating Range | Corrosion Resistant by Eaton
Eaton changeover mechanism with a 1-0-2 switch type and operating temperature range of -25°C to 55°C—ideal for DMV250N/400N switchgear systems. Built for panel builders requiring reliable switching mechanisms, it meets high standards for corrosion resistance and thermal stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton Changeover Mechanism | 1-0-2 Switch Type | -25°C to 55°C Operating Range | Corrosion Resistant by Eaton
Brand: Eaton
SKU: Y8-1314884
Alternatively Known As: Eaton DMV Changeover Mechanism, DMV Accessory Change-over switch, Changeover switch mechanism for DMV250N/400N
Technical Specifications

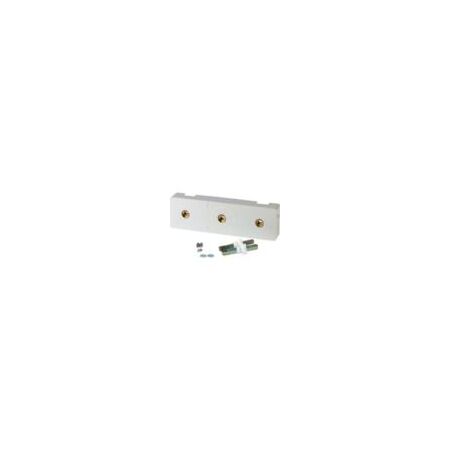

- Product Name: Eaton DMV Accessory Change-over mechanism
- Catalog Number: 1314884
- Changeover switch type: 1 - 0 - 2
- Ambient operating temperature range: -25 °C to 55 °C
- Heat dissipation: 0 W (current-dependent and static)
- Meets product standard requirements for corrosion resistance, thermal stability, UV resistance, and inscriptions
- Does not include switch, drive shaft, and rotary handle
- Short-circuit rating and electromagnetic compatibility are the panel builder's responsibility
- Dimensions (H x L x W): 99mm x 374mm x 54mm
- Weight: 1.2 kg
Key Features
- Changeover switch 1 - 0 - 2
- Meets product standard requirements for corrosion resistance, thermal stability, UV resistance, and inscriptions
- Designed for ambient operating temperatures from -25 °C to 55 °C
- Accessory without switch, drive shaft, and rotary handle
Professional Installation Requirements
- Installation should be performed by a qualified electrician or panel builder familiar with switchgear assembly and compliance requirements.
Applications
- Used as a changeover mechanism accessory for DMV250N/400N switchgear systems
- Suitable for panel builders requiring reliable switching mechanisms
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed to meet product standards ensuring durability and long service life, reducing waste
- No heat dissipation contributes to energy efficiency in electrical panels
Warranty Information
Warranty details to be confirmed with Eaton or authorized distributor.
Available Now
The Eaton DMV Change-Over Mechanism CODMVS160N/400N is available now for immediate purchase. Ideal for use in electrical switchgear panels requiring reliable changeover switching.
