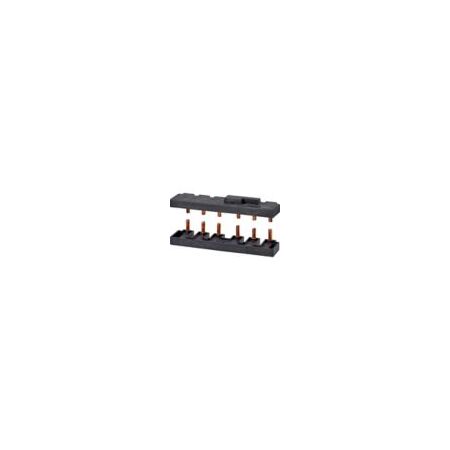

Eaton DILM Reversing Wiring Kit | Compatible with DILM40-DILM72 | Compact Design | Certified to IEC/EN Standards by Eaton
Eaton DILM reversing wiring kit designed for compatibility with DILM40 to DILM72 contactors—ideal for industrial motor control and automation systems. Built for qualified electricians, it enhances energy efficiency and ensures compliance with IEC/EN standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton DILM Reversing Wiring Kit | Compatible with DILM40-DILM72 | Compact Design | Certified to IEC/EN Standards by Eaton
Brand: Eaton
SKU: Y7-101057
Alternatively Known As: DILM Reversing Wiring Kit, Eaton DILM65 Reversing Kit, Motor Reversing Wiring Kit
Technical Specifications
- Product Name: Eaton Moeller series DILM reversing wiring kit
- Catalog Number: 101057
- EAN: 4015081009527
- Product Length/Depth: 27 mm
- Product Height: 32 mm
- Product Width: 110 mm
- Product Weight: 0.114 kg
- Certifications: CSA Class No.: 3211-04 CSA file No. 012528 IEC/EN 60947-4-1 UL 508 CSA-C22.2 No. 14-05 CE marking UL Category Control No.: NLRV UL File No.: E36332 UL Listed CSA certified
- Model: Reversing switching
- Dimensions (H x L x W): 32mm x 27mm x 110mm
- Weight: 0.114 kg
Key Features
- Compatible with Eaton Moeller DILM contactors from DILM40 to DILM72
- Compact design with dimensions 110mm width, 32mm height, 27mm depth
- Certified to IEC/EN 60947-4-1, UL 508, CSA standards
- CE marked for compliance with European safety standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or electrical engineer to ensure compliance with safety standards and proper operation.
Applications
- Industrial motor control and reversing applications
- Automation systems requiring reversing switching
- Electrical control panels and machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by enabling precise motor control
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILM65-XRL reversing wiring kit is available for immediate purchase, ideal for industrial motor control and automation applications.
