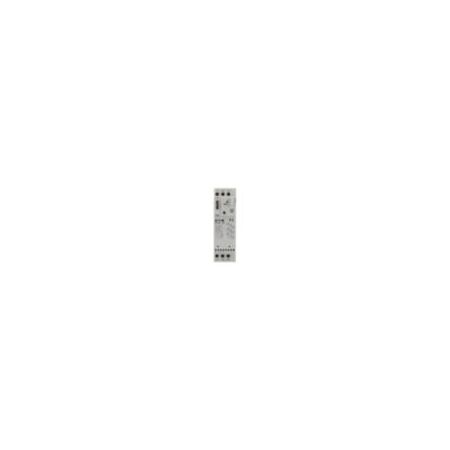

Eaton DS7 Soft Starter 32A | 200-480V AC | SmartWire-DT Interface | IP20 Protection by Eaton

BRAND: Eaton
SKU: Y7-134950
$1,287.00 List price: $1,603.80
+ −
30 Days Return Delivery Options
Eaton DS7 Soft Starter with a rated operational current of 32A and mains voltage range of 200-480V AC—ideal for soft starting three-phase asynchronous motors. Built for industrial motor control and protection, it features a SmartWire-DT communication interface and IP20 protection for enhanced safety.

Product Name/Title: Eaton DS7 Soft Starter 32A | 200-480V AC | SmartWire-DT Interface | IP20 Protection by Eaton

Brand: Eaton

SKU: Y7-134950

Alternatively Known As: Eaton DS7 Softstarter, Eaton Motor Soft Starter, DS7 Soft Start Controller, Eaton Soft Start Module

Technical Specifications
  • Rated operational current (Ie) at AC-53: 32 A
  • Mains voltage range: 200 - 480 V AC
  • Control supply voltage: 24 V DC
  • Rated operational power: 7.5 kW at 220/230 V 50 Hz, 15 kW at 400 V 50 Hz
  • Assigned motor power: 10 HP at 200/208 V 60 Hz, 25 HP at 460/480 V 60 Hz
  • Degree of protection: IP20, NEMA 1
  • Communication interface: SmartWire-DT built-in
  • Fault memory: 8 faults
  • Overvoltage category: II
  • Pollution degree: 2
  • Operating temperature range: -5 °C to 40 °C
  • Shock resistance: 8 g, 11 ms mechanical
  • Vibration resistance: 2M2 to EN 60721-3-2
  • Terminal capacity: flexible with ferrule 0.5 - 10 mm², solid and stranded cables supported
  • Screwdriver size: PZ2, 1 x 6 mm
  • Tightening torque: 3.2 Nm for main terminals, 1.2 Nm for control circuit cables
  • Radio interference class: Class B (EN 55011)
  • Soft start delay time: 0 - 30 s
  • Start voltage range: 30% to 100%
  • Dimensions (H x L x W): 150mm x 126mm x 45mm
  • Weight: 0.4 kg
Key Features
  • Current limitation with PKE
  • Min. ramp time 1 s with fast switching semiconductor contactor
  • Suppression of closing transients
  • Soft start function with adjustable ramp/run-up time (1-30 s)
  • Potential isolation between power and control sections
  • Suppression of DC components for motors
  • Internal bypass contacts
  • SmartWire-DT built-in communication interface
  • Finger and back-of-hand proof protection (IP20, NEMA 1)
  • Fault memory for 8 faults
  • Suitable for branch circuits (UL/CSA)
Professional Installation Requirements
  • Professional installation by a qualified electrician or electrical engineer is required to ensure compliance with electrical standards and safe operation.
Applications
  • Soft starting of three-phase asynchronous motors
  • Industrial motor control and protection
  • Branch circuits for three-phase loads
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Reduces mechanical stress on motors and electrical network during startup, extending equipment life and reducing waste.
  • Improves energy efficiency by optimizing motor starting current.
Warranty Information

Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.

Available Now

The Eaton DS7 Soft Starter 32A is available for immediate purchase, ideal for industrial motor control and automation applications.

Product specifications (skuPage.134950.pdf, 99 Kb) [Download]
