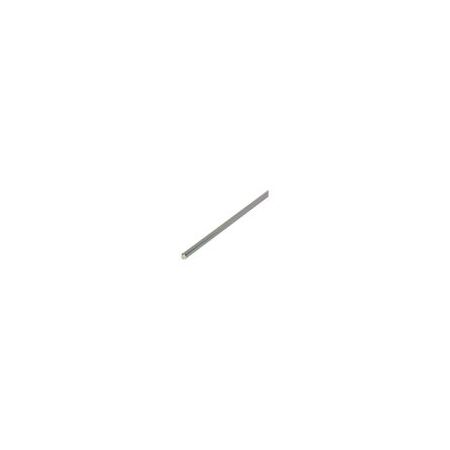

Eaton NZM Extension Shaft | 600 mm Max Depth | 490 mm Length | Corrosion Resistant by Eaton
Eaton NZM extension shaft accessory designed for molded case circuit breakers, featuring a maximum mounting depth of 600 mm and a customizable length of 490 mm. Ideal for electrical switchgear installations, it ensures durability and compliance with local standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton NZM Extension Shaft | 600 mm Max Depth | 490 mm Length | Corrosion Resistant by Eaton
Brand: Eaton
SKU: Y7-260191
Alternatively Known As: Eaton NZM Extension Shaft, NZM1/2 Extension Accessory, Molded Case Circuit Breaker Extension Shaft
Technical Specifications
- Product Name: Eaton Moeller series NZM operating element accessory
- Catalog Number: 260191
- EAN: 4015082601911
- Product Length/Depth: 490 mm
- Product Height: 8 mm
- Product Width: 8 mm
- Product Weight: 0.212 kg
- Compliances: UL/CSA IEC RoHS conform
- Used with: NZM2(-4), PN2(-4), N(S)2(-4), NZM1(-4), PN1(-4), N(S)1(-4)
- Features: 600 mm max. built-in depth
- Meets product standard requirements for corrosion resistance, thermal stability, UV resistance, and inscriptions
- Dimensions (H x L x W): 8mm x 490mm x 8mm
- Weight: 0.212 kg
Key Features
- Extension shaft accessory for Eaton Moeller series NZM molded case circuit breakers
- Maximum mounting depth of 600 mm
- Length 490 mm, can be cut to desired length
- Cross section dimensions: 8 mm height x 8 mm width
- Meets product standard requirements for corrosion resistance, thermal stability, UV resistance, and inscriptions
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with molded case circuit breaker systems and compliance with local electrical standards.
Applications
- Used with NZM1(-4), NZM2(-4), PN1(-4), PN2(-4), N(S)1(-4), N(S)2(-4) molded case circuit breakers
- Suitable for electrical switchgear requiring extension shaft for mounting depth up to 600mm
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient electrical system design reducing energy losses
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty terms as per Eaton standard product warranty policy.
Available Now
The Eaton NZM1/2-XV6 extension shaft is available for immediate purchase, ideal for electrical switchgear installations requiring extended mounting depth.
