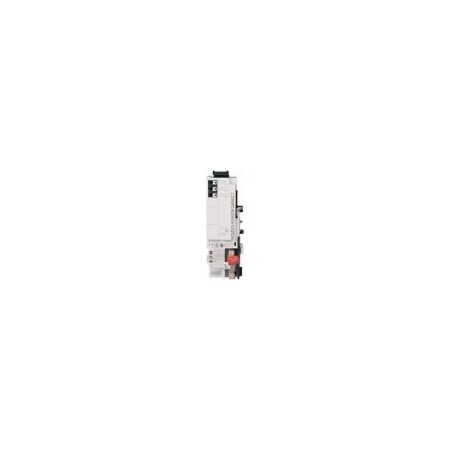

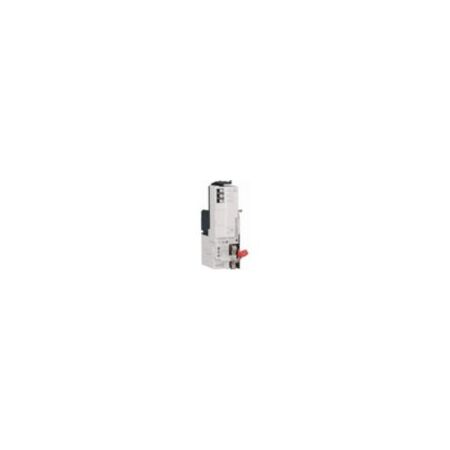

Product Name/Title: Eaton NZM Relay Module | 2 Relays | 24V AC/DC & 240V AC | Push-in Terminal by Eaton
Brand: Eaton
SKU: Y7-189722
Alternatively Known As: NZM Relay Module, Eaton NZM2/3 Relay, NZM2/3-X2A Accessory Relay, Circuit Breaker Relay Module
Technical Specifications
- Number of relays: 2
- Rated control voltage (relay contacts): 24 V AC, 24 V DC, 240 V AC
- Rated operational current: 1 A at 230 V AC, 24 V DC, 24 V AC, 110 V AC
- Rated insulation voltage (Ui): 250 V
- Rated impulse withstand voltage (Uimp): 4 kV AC
- Connection type: Push-in terminal
- Terminal capacity (stranded cable): 0.25 mm² - 0.75 mm² (uninsulated ferrule), 0.25 mm² - 1.5 mm² (insulated ferrule)
- Terminal capacity (solid cable): 0.2 mm² - 1.5 mm²
- Switching capacity (reference value) - min: 0.1 mA / 0.1 VDC
- Pollution degree: 2
- Overvoltage category: III
- Frame compatibility: NZM2/3
- Special features: Configurable activation criteria, relay contacts for control wiring, not compatible with certain auxiliary breakers and trips
- Dimensions (H x L x W): 65mm x 115mm x 75mm
- Weight: 0.06 kg
Key Features
- Two relays per unit
- Configurable activation criteria via communication, circuit breaker display, front USB port, or Eaton Power Xpert Protection Manager
- Relay contacts for control wiring
- Relays can control remote operator with Us=208-204 V AC
- Control wiring on push-in clamps
- Not compatible with PXR10 NZM-AX electronic trip
- Cannot be installed simultaneously with make-before-break auxiliary breaker NZM...-XHIV, under-voltage trip NZM...-XU, or shunt trip NZM...-XA
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure proper integration with NZM2/3 circuit breakers and compliance with electrical standards.
Applications
- Signalizing commands or different states of circuit-breakers
- Control wiring for remote operator control
- Use with circuit-breakers with electronic trips
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient electrical system control reducing unnecessary power usage
- Complies with RoHS, reducing hazardous substances
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller NZM2/3-X2A Relay Module is available for immediate purchase, ideal for electrical control and protection applications in industrial and commercial switchgear systems.
