Eaton P3-63/I4/SVB Main Switch | 63A Rated Current | IP65 Protection | Emergency Stop Function | @Each by Eaton
The Eaton P3-63/I4/SVB Main Switch is designed for reliable isolation in industrial electrical panels, featuring a 63A rated current and IP65 protection. With an emergency stop function and a durable design, it's perfect for safety and maintenance applications, ensuring compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton P3-63/I4/SVB Main Switch | 63A Rated Current | IP65 Protection | Emergency Stop Function | @Each by Eaton
Brand: Eaton
SKU: Y7-207343
Alternatively Known As: Eaton P3 Main Switch 63A, Eaton Emergency Stop Switch, Eaton 3-Pole Main Isolator, P3-63/I4/SVB Main Switch
Technical Specifications
- Rated current: 63 A at AC-21 and AC-23
- Rated operational voltage: up to 690 V
- Rated operational power: up to 55 kW depending on voltage
- Rated short-time withstand current (Icw): 1.26 kA for 1 second
- Degree of protection: IP65 (front), NEMA 12
- Operating temperature range: -25 °C to 40 °C
- Mechanical lifespan: 100,000 operations
- Switching angle: 90°
- Pollution degree: 3

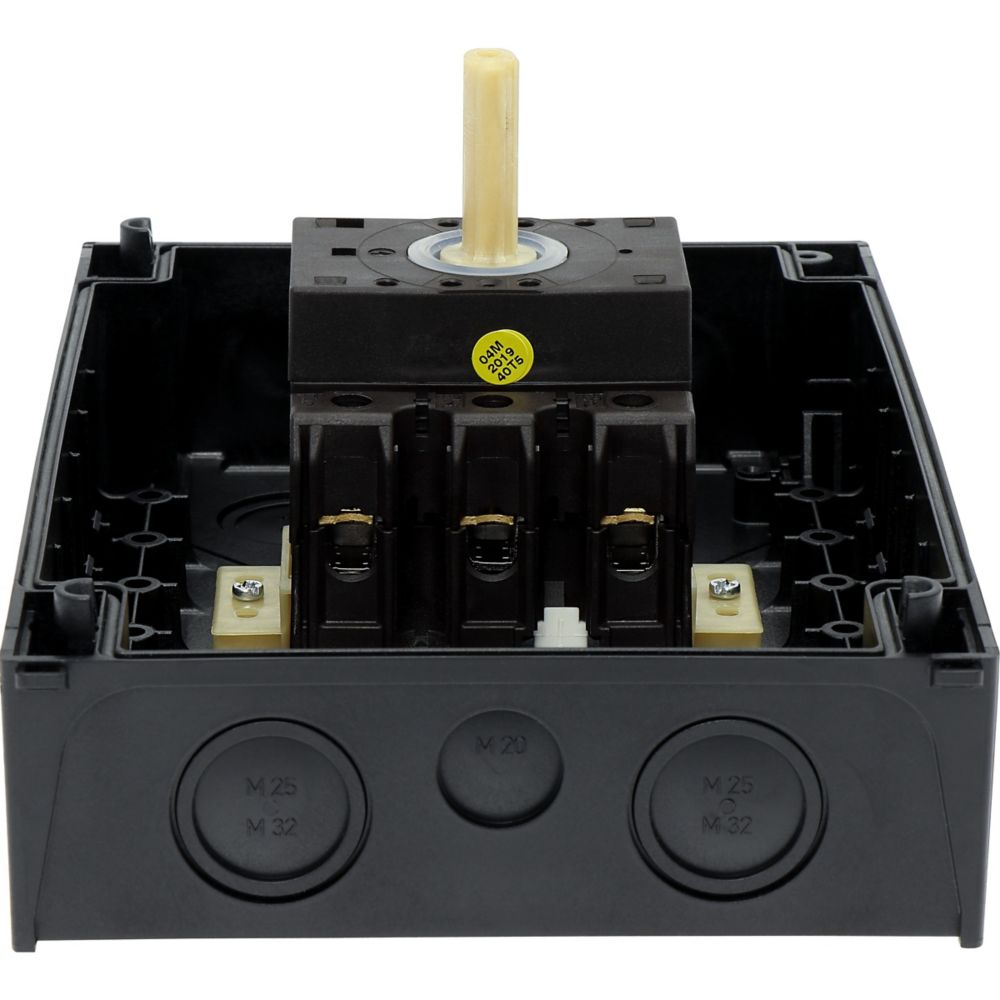

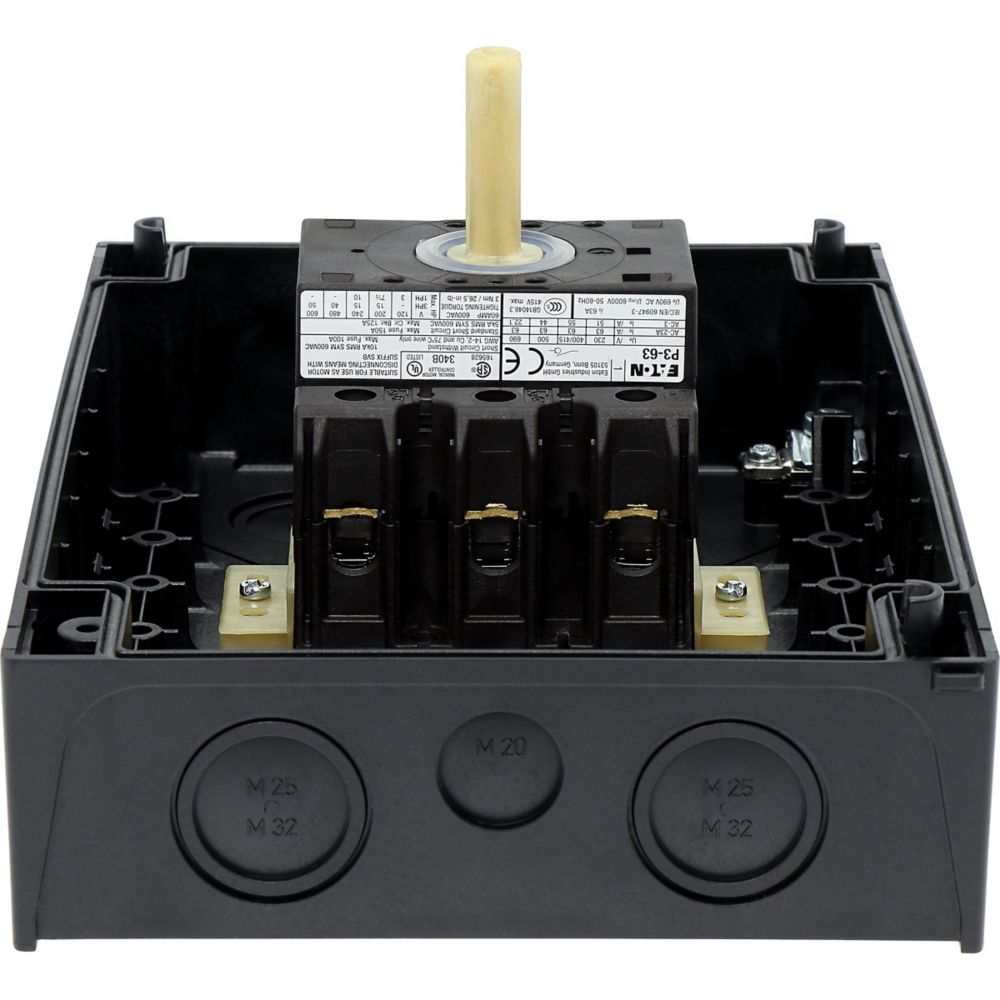

- Screw connection terminals (M5 screws)
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Housing material: Plastic, color gray
- Lockable in off position with yellow locking ring
- Emergency switching off function included
- Dimensions (H x L x W): 180mm x 139mm x 160mm
- Weight: 1.1 kg
Key Features
- 63 A rated current for AC-21 and AC-23 utilization categories
- 3-pole main switch with emergency switching off function

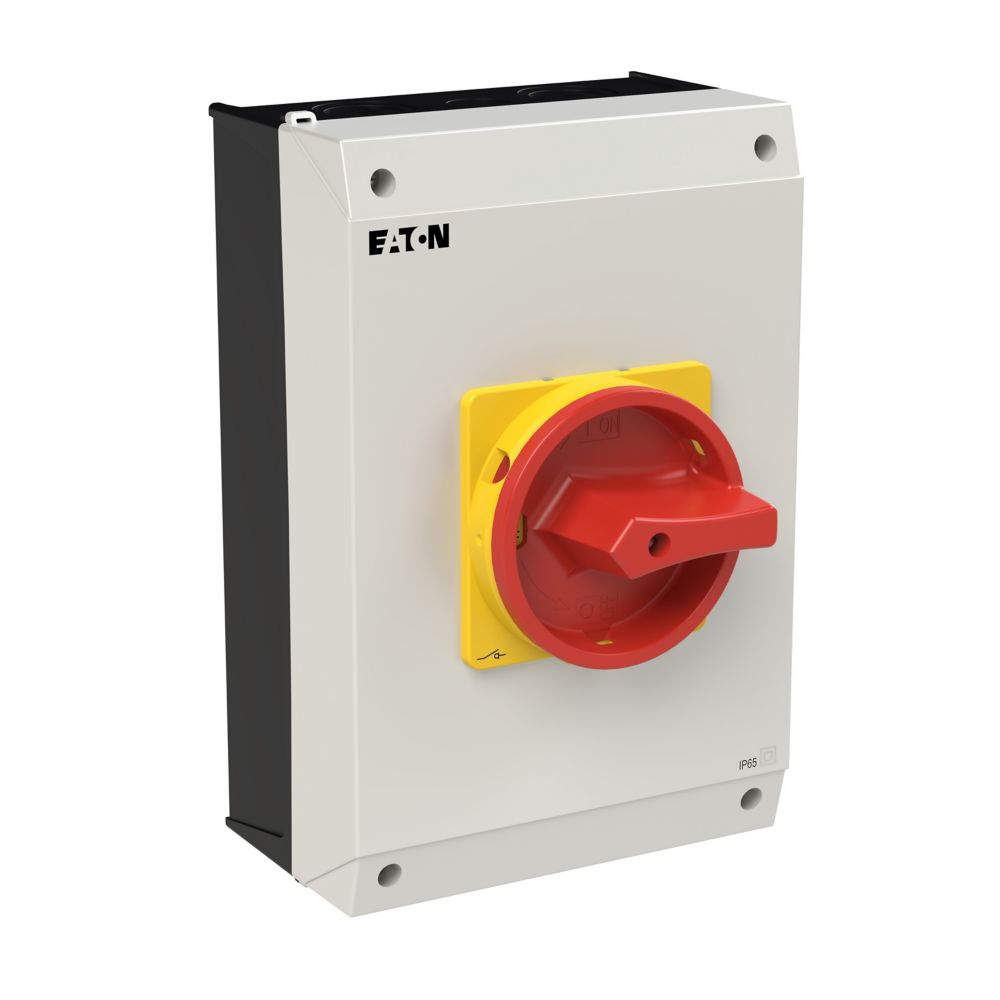

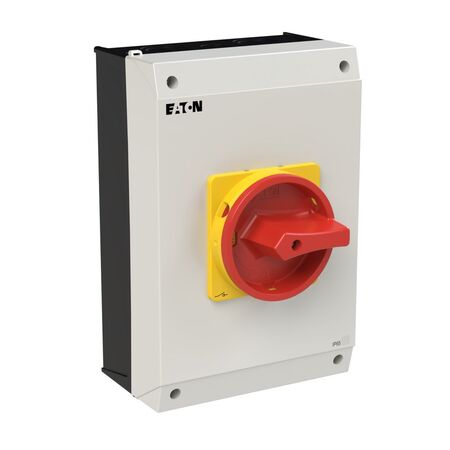

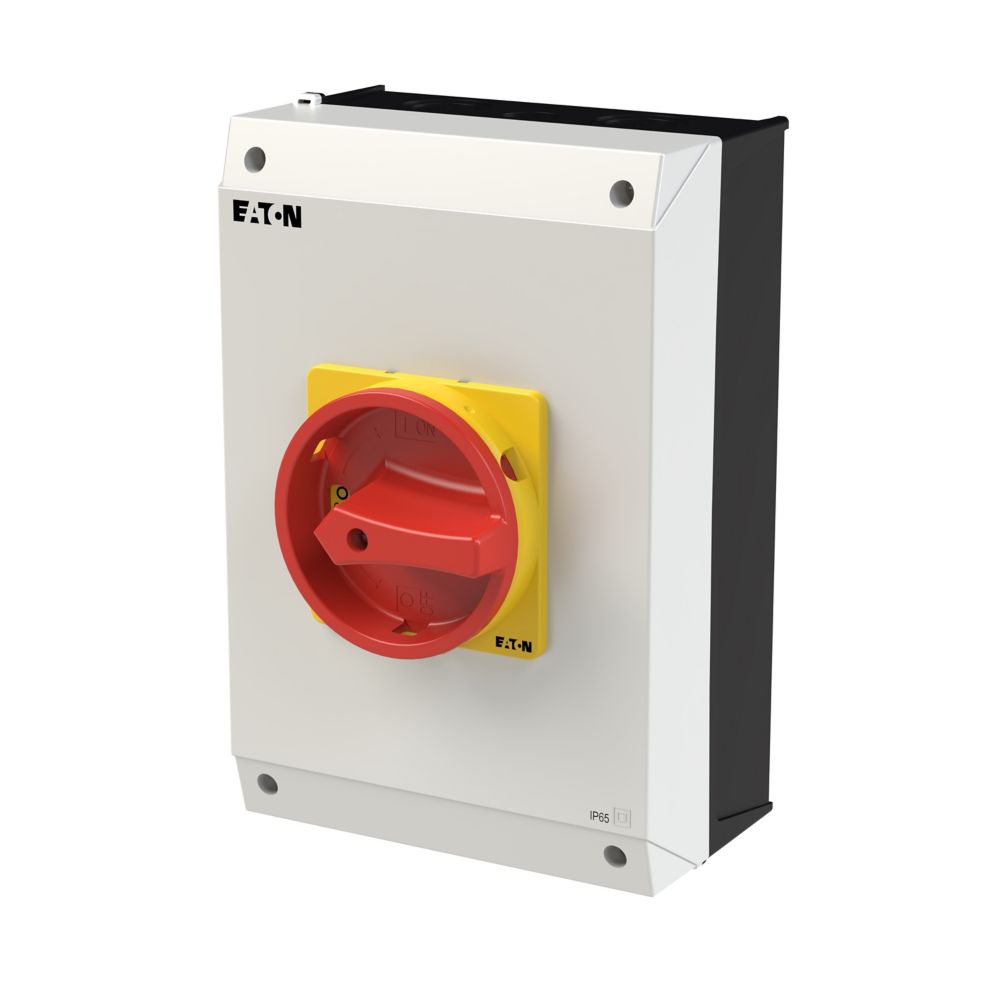

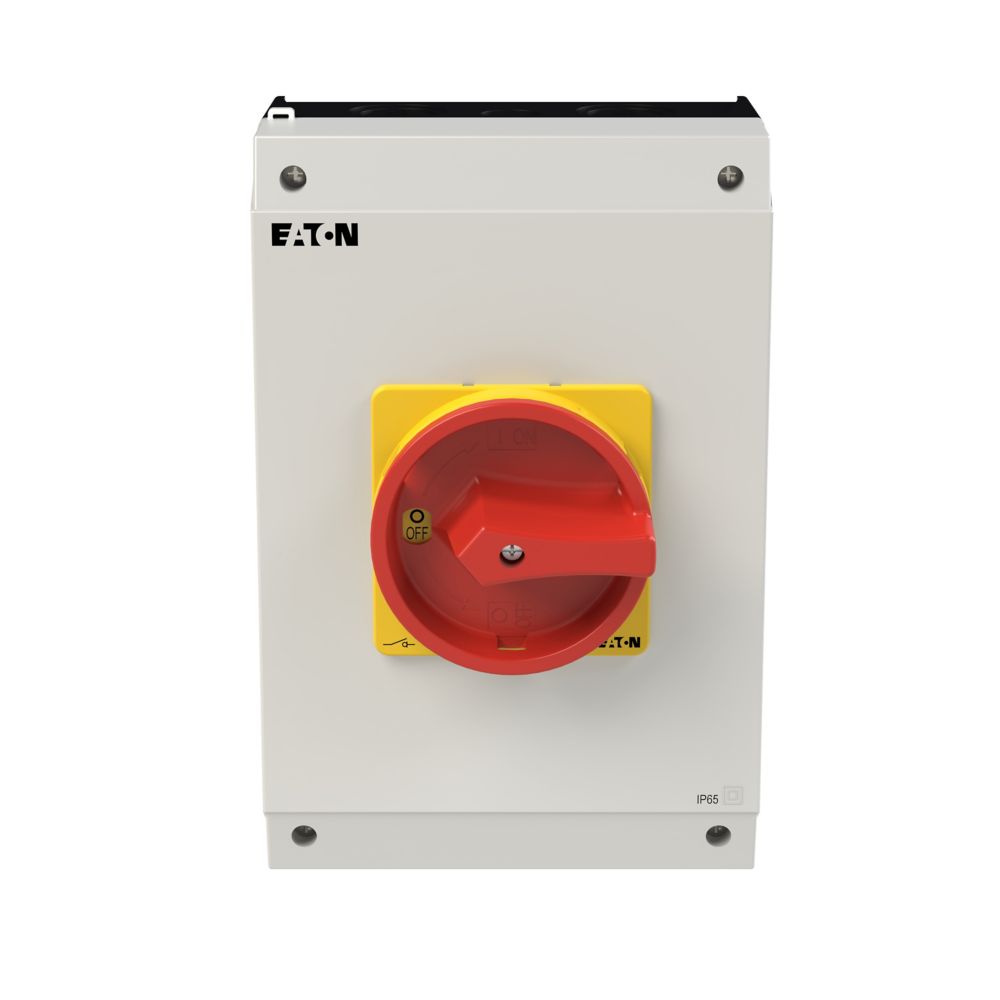

- Red rotary handle with yellow locking ring, lockable in the off position
- Surface mounting design with IP65 front protection and NEMA 12 degree of protection
- Rated operational power up to 55 kW depending on voltage and application
- Screw connection type for main circuit
- Mechanical lifespan of 100,000 operations
- Suitable for ground mounting with interlockable function
- Rated impulse withstand voltage of 6000 V AC
- Operating temperature range from -25 °C to 40 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical system.
Applications
- Industrial electrical panels requiring main switch isolation
- Emergency stop applications in machinery and equipment
- Surface mounting electrical installations
- Safety and maintenance switch applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safe disconnection of electrical circuits reducing risk of electrical hazards
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller P3-63/I4/SVB main switch is available for immediate purchase, ideal for industrial and safety electrical applications requiring reliable emergency switching.
