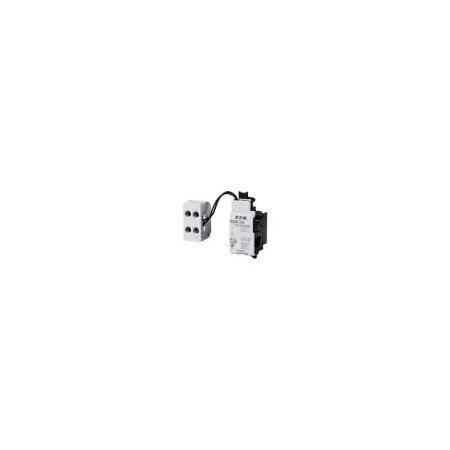

Eaton Shunt Release NZM1-XA208-250AC/DC | 208-250V AC/DC | 20ms Reaction Time | Screw Connection by Eaton
Eaton NZM1-XA208-250AC/DC shunt release operates at 208-250V AC/DC with a rapid 20ms reaction time—ideal for enhancing safety in electrical switchgear applications. Built for use with NZM1 circuit breakers, it ensures reliable operation and compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton Shunt Release NZM1-XA208-250AC/DC | 208-250V AC/DC | 20ms Reaction Time | Screw Connection by Eaton
Brand: Eaton
SKU: Y7-259726
Alternatively Known As: NZM1 Shunt Trip, NZM1 Shunt Release, Eaton Shunt Release 208-250V AC/DC
Technical Specifications
- Rated control supply voltage: 208 - 250 V AC/DC
- Voltage rating: 0.7 - 1.1 x Us
- Reaction time: 20 ms
- Pick-up power consumption: 2.5 VA/W
- Frequency rating: 50 Hz / 60 Hz / 200 Hz / 400 Hz, DC
- Number of contacts (normally open, closed, change-over): 0
- Electric connection type: Screw connection
- Terminal capacity: 0.75 mm² - 2.5 mm² with ferrule
- Suitable for off-load switch
- Connection type: Terminal block on left-hand switch side
- Type: Accessory Shunt release
- Dimensions (H x L x W): 66mm x 37mm x 32mm
- Weight: 0.074 kg
Key Features
- Switches are tripped by a voltage pulse or by the application of uninterrupted voltage
- Prevents contact with the circuit breaker’s primary contacts when switched on if shunt trip is live
- Cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release
- Rated control supply voltage: 208 - 250 V AC/DC
- Reaction time: 20 ms
- Pick-up power consumption: 2.5 VA/W
- Frequency rating: 50 Hz / 60 Hz / 200 Hz / 400 Hz, DC (shunt release)
- Electric connection type: Screw connection
- Connection type: With terminal block on the left-hand switch side
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration with NZM1 circuit breakers.
Applications
- Used with NZM1(-4) and N(S)1(-4) circuit breakers
- Suitable for off-load switch applications requiring shunt release
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enhances electrical safety reducing risk of faults and electrical hazards
- Supports efficient circuit breaker operation contributing to system reliability
Warranty Information
Warranty terms as per Eaton standard product warranty policy.
Available Now
The Eaton NZM1-XA208-250AC/DC Shunt Release is available now for immediate purchase. Ideal for enhancing safety and control in electrical switchgear applications.
