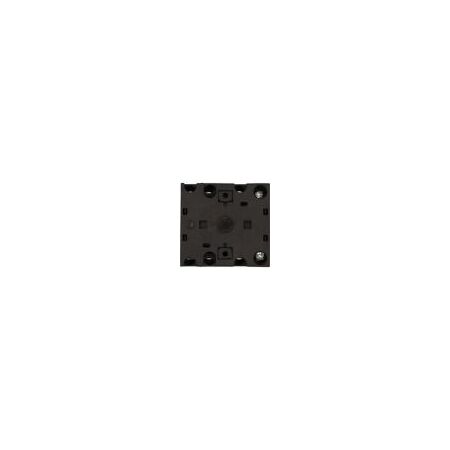

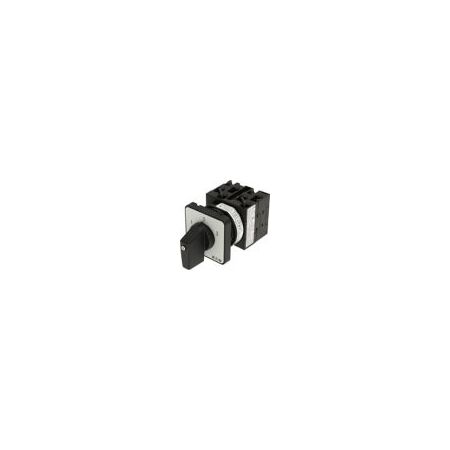

Eaton T0 Reversing Switch | 20A Rated Current | IP65 Protection | 3 Poles by Eaton
Eaton T0 reversing switch with a rated operational current of 20A and IP65 protection—ideal for motor control and reversing applications. Built for industrial and commercial use, featuring a maintained actuator and high mechanical lifespan of 400,000 operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton T0 Reversing Switch | 20A Rated Current | IP65 Protection | 3 Poles by Eaton
Brand: Eaton
SKU: Y7-91047
Alternatively Known As: Eaton T0 Reversing Switch, Moeller T0 Motor Reversing Switch, 20A Reversing Control Switch, Flush Mount Reversing Switch
Technical Specifications
- Rated operational current: 20 A at AC-3, 400 V
- Number of poles: 3
- Number of contacts: 5
- Switching angle: 60°
- Degree of protection: IP65 front side, NEMA 12
- Mechanical lifespan: 400,000 operations
- Operating frequency: 1200 operations per hour
- Rated impulse withstand voltage: 6000 V AC
- Rated short-time withstand current: 320 A for 1 second
- Rated making capacity up to 690 V: 130 A
- Rated operational power at AC-3, 400 V: 4 kW
- Ambient operating temperature: -25 °C to 50 °C
- Terminal capacity: 1 x (0.75 - 2.5) mm² flexible with ferrule
- Mounting method: Flush mounting
- Actuator type: Short thumb-grip, maintained with 0 (Off) position
- Dimensions (H x L x W): 48mm x 95mm x 48mm
- Weight: 0.121 kg
Key Features
- Flush mounting design with 3 contact units and 5 contacts
- Maintained actuator with 0 (Off) position and 1-0-2 inscription
- Rated operational current of 20 A at AC-3, 400 V
- High mechanical lifespan of 400,000 operations
- Degree of protection IP65 and NEMA 12 for front side
- Rated impulse withstand voltage of 6000 V AC
- Suitable for branch circuits and motor disconnect applications
- Operating temperature range from -25 °C to 50 °C
- Shock resistance of 15 g mechanical according to IEC/EN 60068-2-27
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Motor control and reversing applications
- Branch circuits and motor disconnect
- Industrial and commercial electrical control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- High operational efficiency supports energy-saving motor control
Warranty Information
Warranty details are provided by Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller® series T0 Reversing Switch is available for immediate purchase, ideal for industrial and commercial motor control applications.
