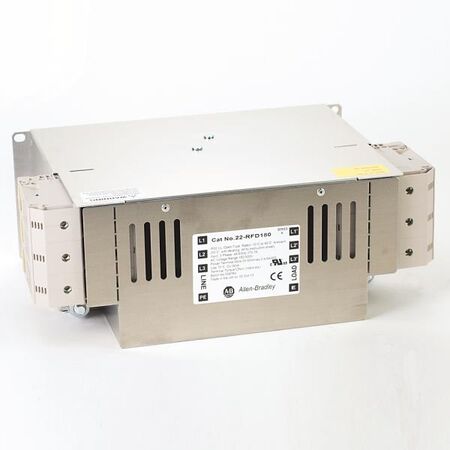

ECM Line Filter for PowerFlex 4 Class | 100 Amp Rating | 240-480 VAC | Panel Mount | by Allen-Bradley
The ECM Line Filter for PowerFlex 4 Class is designed for optimal performance in industrial motor control systems. With a robust 100 Amp current rating and compatibility with 240-480 VAC, this filter effectively reduces electrical noise and interference, enhancing energy efficiency and equipment lifespan. Ideal for 3-phase electrical systems, it ensures reliable operation for 15-18.5 kW motors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Current Rating: 100 Amp
- Voltage: 240-480 VAC
- Frequency: 50/60 Hz
- Power Range: 15-18.5 kW (20-25 HP)
- Phase: 3-phase
- Mounting: Panel mount
- Dimensions (H x L x W): 100mm x 120mm x 150mm
- Weight: 5 kg
Key Features
- ECM line filter designed for PowerFlex 4 Class drives
- Rated for 100 Amp current
- Supports 3-phase power supply
- Operates at 240-480 VAC, 50/60 Hz
- Suitable for 15-18.5 kW (20-25 HP) motors
- Panel mount installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial motor control systems
- PowerFlex 4 Class variable frequency drives
- 3-phase electrical systems requiring line filtering
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces electrical noise and interference, improving energy efficiency and equipment lifespan
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 22RFD100 ECM Line Filter is available for immediate purchase, ideal for industrial motor control and PowerFlex 4 Class drive applications.
