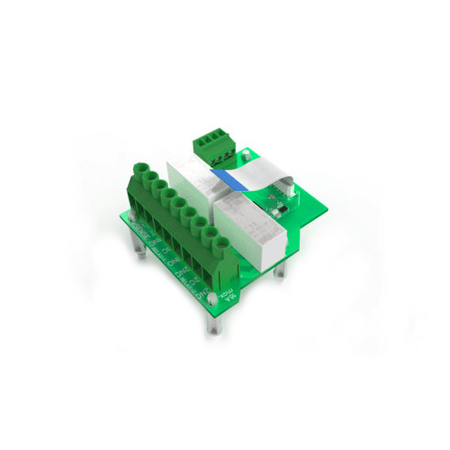

Eddi Relay Board | 16Amp Rating | 2 Multi-Function Relays | eSense Input by My Energi
Eddi Relay Board with two independent 16Amp relays and eSense input for isolated 230V detection—ideal for solar energy systems and load management. Built for residential, commercial, and industrial applications, it supports various relay functions for efficient energy use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: eddi Relay Board
Brand: My Energi
SKU: EDDI-RLYBD
Alternatively Known As: eddi Relay & Sensor Board, My Energi Relay Module, eddi Load Control Board
Technical Specifications
- Relay rating: 16Amp per relay
- Number of relays: 2 independent multi-function relays
- Load support: Inductive load up to 3.68kW
- eSense input: Isolated 230V detection
- Temperature sensor inputs: 2 x PT1000
- Relay functions: Export Threshold, Import Threshold, Heating operation, De-stratification pump control, Timed operation, Fault signal for BMS
- Dimensions (H x L x W): 100mm x 50mm x 150mm
- Weight: 0.5 kg
Key Features
- Two independent multi-function relays rated at 16Amp each
- eSense input for isolated 230V detection (e.g., low tariff detection)
- Two temperature sensor inputs (PT1000)
- Supports various relay functions including export/import threshold, heating operation, de-stratification pump control, timed operation, and fault signaling for BMS
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with electrical wiring and relay configurations to ensure safety and compliance.
Applications
- Residential: Solar energy systems with load management
- Commercial: Energy management in buildings
- Industrial: Control of inductive loads up to 3.68kW
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient energy use by managing load operation based on solar export and import thresholds
- Supports integration with renewable energy systems to optimize energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to My Energi warranty terms.
Available Now
The My Energi eddi Relay Board is available for immediate purchase, ideal for enhancing energy management in solar and electrical load control systems.
