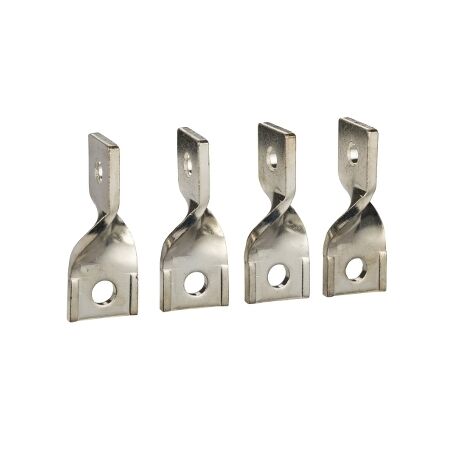

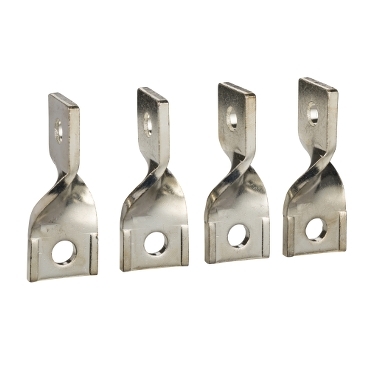

4 EDGEWISE Terminal Ext PH Bar | High-Conductivity Copper | Direct Fit for NSX 400/630 | by Clipsal
The 4 EDGEWISE Terminal Ext PH Bar is designed for seamless compatibility with ComPacT NSX 400/630 circuit breakers, enhancing flexibility in panel wiring. Made from high-conductivity copper with a protective coating, this terminal extension ensures reliable performance in electrical distribution panels and industrial switchboards. Ideal for licensed electricians looking to upgrade or extend terminal connections safely and efficiently.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 EDGEWISE Terminal Ext PH Bar | High-Conductivity Copper | Direct Fit for NSX 400/630 | by Clipsal
Brand: Clipsal
SKU: SCHLV432487
Alternatively Known As: Terminal Extension Bar, NSX Terminal Extension, Edgewise PH Bar, SCHLV432487 Terminal Bar, ComPacT NSX Terminal Extension
Technical Specifications
- Compatibility: ComPacT NSX 400/630 circuit breakers
- Type: Edgewise terminal extension PH bar
- Material: High-conductivity copper with protective coating
- Mounting: Direct fit to NSX terminals
- Current Rating: Matches NSX 400/630 specifications
- Dimensions (H x L x W): 30mm x 120mm x 40mm
- Weight: 0.4 kg
Key Features
- Designed for ComPacT NSX 400/630 circuit breakers
- Edgewise terminal extension for easy connection
- Enhances flexibility in panel wiring
- Durable construction for reliable performance
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian standards and electrical safety.
Applications
- Electrical distribution panels
- Industrial switchboards
- Commercial electrical installations
- Upgrading or extending terminal connections in ComPacT NSX 400/630 circuit breakers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient electrical panel upgrades, reducing the need for full replacements.
- Durable materials extend product lifespan, minimizing waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4 EDGEWISE Terminal Ext PH Bar SCHLV432487 is available for immediate purchase. Ideal for industrial and commercial electrical panel upgrades and maintenance.
