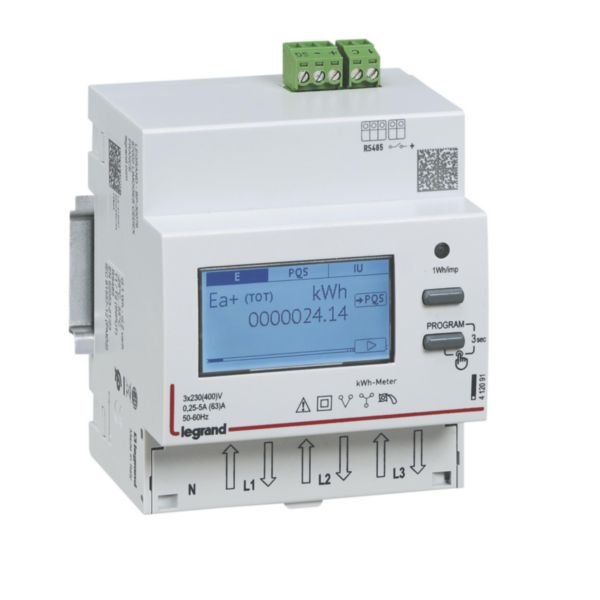

eDMX³ Energy Meter Tri Direct 63A | RS485 Interface | MID Certified | IP54 Rated | @Each of 1 | by Legrand
The eDMX³ Energy Meter Tri Direct 63A is designed for precise energy monitoring in industrial and commercial settings. With a robust RS485 communication interface and MID certification, it ensures accurate billing and compliance. Ideal for three-phase power measurement, this meter features a backlit digital display for easy reading and supports bidirectional measurement for effective energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Electronic energy meter
- Nominal current: 5 A
- Maximum current: 63 A
- Nominal voltage N-L: 197-265 V
- Nominal voltage L-L: 340-460 V
- Frequency range: 49-61 Hz
- Accuracy class: B
- Pole type: Three conductor/four conductor
- Energy types measured: Effective power and reactive power
- Tariff type: Two-tariff
- Tariff control: External
- Display type: Digital backlit
- Mounting method: DIN-rail adaptor (DRA)
- Width: 4 modular spacings (71.2 mm)
- Depth: 66 mm
- Height: 92.4 mm
- Interface: RS-485
- Degree of protection: IP54
- Operating temperature: -25 to 55 °C
- Storage temperature: -25 to 70 °C
- Connection type: Screwed terminal, 1-16 mm² capacity
- Halogen free: Yes
- Prewired: No
- Dimensions (H x L x W): 92mm x 66mm x 71mm
- Weight: 0.3 kg
Key Features
- Direct connection up to 63A for 3-phase or 3-phase + neutral
- Modbus RS485 communication interface
- Double tariff or pulse input for additional meter data collection (gas, water, electrical)
- MID certified for accuracy and compliance
- Bidirectional measurement of production and consumption energies
- Backlit digital display with easy data reading and parameter preview
- User code protected settings mode
- Measures run hours on each tariff and local phase shift display
- IP54 rated for protection against dust and water splashes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct connection to the electrical system.
Applications
- Industrial and commercial electrical energy monitoring
- Three-phase power measurement in switchboards and power cabinets
- Energy management systems requiring bidirectional measurement and tariff control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables accurate energy consumption monitoring to optimize energy use and reduce waste
- Supports bidirectional measurement facilitating renewable energy production tracking
- Helps in implementing energy-saving strategies through detailed tariff and consumption data
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand eDMX³ Energy Meter Tri Direct 63A 230/400V 2 Tariff RS485 MID is available for immediate purchase, ideal for industrial and commercial energy monitoring applications.
