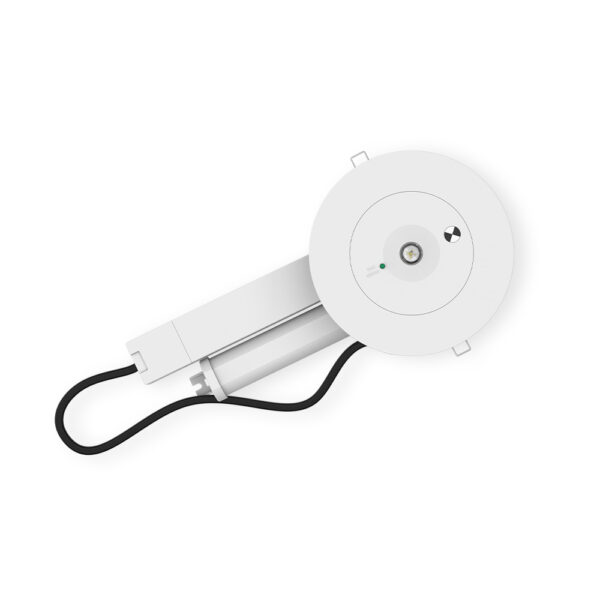

Ektor Lynk Advanced Ledfire Emergency Luminaire | IP44 Rated | Wireless DALI DT1 Control | 330 lm Output | by Ektor
The Ektor Lynk Advanced Ledfire Emergency Luminaire is designed for reliable emergency lighting in commercial and public spaces. With an IP44 rating for moisture resistance and a durable polycarbonate body, this recessed luminaire features wireless DALI DT1 control and provides 330 lumens for up to 90 minutes during emergencies. Ideal for corridors and public areas, it ensures safety and compliance with Australian standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wireless Emergency Luminaire, Ledfire Emergency Light, Lynk Advanced Emergency Light, Recessed Emergency LED Light
Technical Specifications
- IP Rating: IP44 front face only
- Body Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2.5 W
- Standby Power: 0.25 W
- Emergency Mode: Non-Maintained
- Emergency Classification: C0:D63, C90:D63
- Emergency Output Power: 2100 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 330 lm
- Driver Type: Wireless (IEC62386-104) with DALI DT1
- Dimmable: No
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Replacement Battery Code: 01302
- Product Design Life: 8 years
- Dimensions (H x L x W): 80mm x 200mm x 200mm
- Weight: 1.2 kg
Key Features
- IP44 rated front face for moisture resistance
- Polycarbonate body for durability
- Recessed installation type
- Wireless DALI DT1 emergency control with IEC62386-104 compliance
- Non-maintained emergency mode with 90 minutes duration
- Emergency lumen output of 330 lm
- Maximum wattage of 2.5 W with standby power of 0.25 W
- Supports emergency test and monitoring over DALI and wireless protocols
- Product design life of 8 years
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings requiring emergency lighting
- Public spaces and corridors
- Recessed installation in ceilings for emergency illumination
Standards & Compliance
- AS/NZS 60598.1 – Luminaires
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption reduces energy waste
- Long product design life minimizes replacement frequency and waste
Warranty Information
6 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Advanced Ledfire Emergency Luminaire is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
