Ektor Lynk Advanced Ledfire Surface Mount | IP65 Rated | Wireless Control | 90 Min Emergency Duration | by Ektor

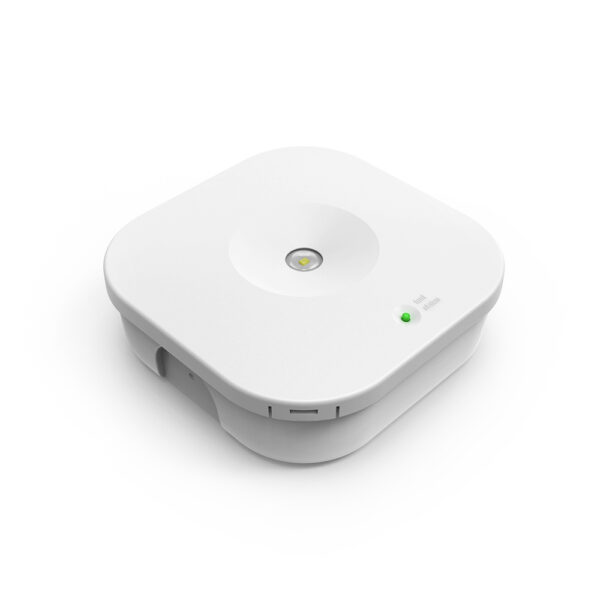

The Ektor Lynk Advanced Ledfire Surface Mount is an IP65-rated emergency light designed for commercial and industrial applications. With a robust polycarbonate body and wireless control capabilities, it ensures reliable performance in emergencies. Offering a 90-minute emergency duration and 320 lumens output, this light is perfect for areas requiring efficient and compliant emergency lighting solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ektor Ledfire IP65 Emergency Light, Ektor Wireless Emergency Light, Ektor DALI Emergency Surface Mount Light
Technical Specifications
- IP Rating: IP65
- Body Material: Polycarbonate
- Installation Type: Surface mount
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 2 W
- Standby Power: 0.4 W
- Driver Type: DALI DT1 Emergency or Wireless IEC62386-104 with DT1
- Wiring Type: Re-wireable terminal block (3 or 5 pin depending on model)
- Emergency Mode: Non-Maintained
- Emergency Classification: C0:D63, C90:D63
- Emergency Output Power: 2200 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 320 lm
- Operating Temperature Range: 0 to 40 °C
- Product Design Life: 8 years
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- IP65 rated for dust and water ingress protection
- Surface mount installation with polycarbonate body
- Integrated driver with DALI DT1 Emergency or Wireless IEC62386-104 control
- Non-maintained emergency mode with 90 minutes duration
- Emergency output power of 2200 mW and lumen output of 320 lm
- Supports emergency test and monitoring over DALI and wireless protocols
- Standby power consumption of 0.4 W
- Operating temperature range from 0 to 40 °C
- Product design life of 8 years
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and industrial emergency lighting
- Surface mount installations requiring IP65 rated emergency lighting
- Areas requiring DALI or wireless monitored emergency lighting systems
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption reduces energy usage
- Long product design life minimizes waste and replacement frequency
- Energy-efficient LED technology reduces overall power consumption
Warranty Information
6 years return to base (RTB) commercial use warranty.
Available Now
The Ektor Lynk Advanced Ledfire Surface Mount IP65 Emergency Light is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
