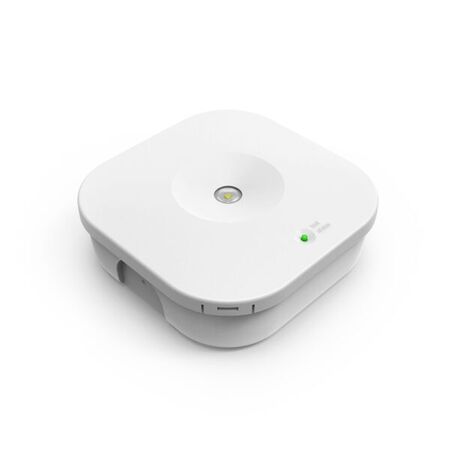

Ektor Lynk Advanced Ledfire Surface Mount | IP65 Rated | Wireless Emergency Control | 90 Min Duration | by Ektor
The Ektor Lynk Advanced Ledfire Surface Mount is an IP65-rated emergency light designed for commercial and industrial applications. With a maximum wattage of 2W and a wireless emergency control feature, it ensures reliable performance during power outages. Ideal for surface mount installations, this light offers a 90-minute emergency duration and 320 lumens output, making it a perfect choice for safety compliance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ektor Ledfire IP65 Emergency Light, Lynk Advanced Wireless Emergency Light, DALI Emergency Surface Mount Light
Technical Specifications
- IP Rating: IP65
- Body Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2 W
- Standby Power: 0.4 W
- Driver Type: DALI DT1 Emergency or Wireless IEC62386-104 with DT1
- Wiring Type: Re-wireable terminal block (3 or 5 pin)
- Emergency Mode: Non-Maintained
- Emergency Classification: C0:D63, C90:D63
- Emergency Output Power: 2200 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 320 lm
- Emergency Control: DALI Monitored (DT1) or Wireless IEC62386-104
- Product Design Life: 8 years
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 1.2 kg
Key Features
- IP65 rated for dust and water ingress protection
- Surface mount installation with polycarbonate body
- Maximum wattage of 2W with 230Vac input voltage
- Non-maintained emergency mode with 90 minutes duration
- Emergency lumen output of 320 lm
- Supports DALI DT1 and IEC62386-104 wireless emergency control and monitoring
- Re-wireable terminal block wiring (3 or 5 pin depending on model)
- Product design life of 8 years at maximum ambient temperature
- Standby power consumption of 0.4W
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and industrial emergency lighting
- Surface mount installations requiring IP65 rated emergency lighting
- Areas requiring wireless or DALI monitored emergency lighting systems
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 2W maximum wattage and 0.4W standby power reduces energy use.
- Long product design life of 8 years reduces waste and replacement frequency.
Warranty Information
6 years return to base (RTB) commercial use warranty.
Available Now
The Ektor Lynk Advanced Ledfire Surface Mount IP65 emergency light is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
