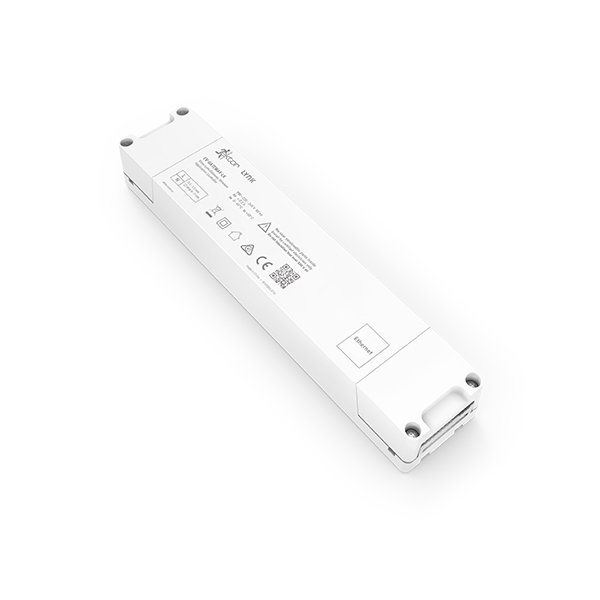

Ektor Lynk Gateway EWAC Controller | IP20 Rated | Polycarbonate Body | Field Mount Installation | by Ektor
The Ektor Lynk Gateway EWAC Controller is designed for efficient electrical control in commercial and industrial applications. With an IP20 rating and durable polycarbonate body, it operates within a temperature range of 0 to 40 °C and supports an input voltage range of 216Vac to 253Vac. Ideal for field mount installations, this controller ensures compliance with electrical standards while reducing energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EWAC Controller, Ektor Lynk Gateway Controller, Electrical Control Gateway
Technical Specifications
- IP Rating: IP20
- Body Material: Polycarbonate
- Installation Type: Field mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%), range 216Vac to 253Vac
- Dimensions (H x L x W): 100mm x 50mm x 150mm
- Weight: 1.5 kg
Key Features
- Polycarbonate body material for durability
- Field mount installation type
- Operating temperature range from 0 to 40 °C
- Input frequency of 50 Hz
- Input voltage range 216Vac to 253Vac (230Vac -6%/+10%)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Field mount installation for electrical control systems
- Commercial and industrial electrical control applications
Standards & Compliance
- AS/NZS 61347.2.11
- AS/NZS 61347.1
- AS CISPR 15
- AS/NZS 4268
- IEC 62386-104
- IEC 62386-103
Environmental Benefits
- Designed for efficient electrical control to reduce energy waste
- Durable polycarbonate housing extends product lifespan
Warranty Information
3 years return to base (RTB) warranty for commercial use.
Available Now
The Ektor Lynk Gateway - EWAC Controller is available for immediate purchase, ideal for commercial electrical control applications.
