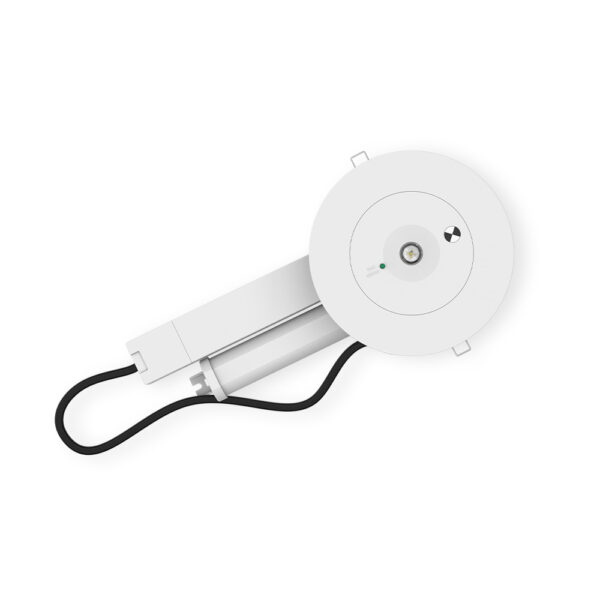

Ektor Lynk Ledfire Advanced Emergency Luminaire | IP44 Rated | Wireless DALI DT1 Control | 90 Min Emergency Duration | by Ektor
The Ektor Lynk Ledfire Advanced Emergency Luminaire is designed for reliable emergency lighting in commercial and public spaces. With an IP44 rating for moisture resistance and a durable polycarbonate body, it features a non-maintained emergency mode that lasts up to 90 minutes. Ideal for recessed installation, this luminaire supports wireless monitoring and testing, ensuring compliance with safety standards while minimizing maintenance efforts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ektor Lynk Ledfire Emergency Light, Wireless Emergency Luminaire, D63 Emergency LED Light, Recessed Emergency Light
Technical Specifications
- IP Rating: IP44 front face only
- Body Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2.5 W
- Standby Power: 0.25 W
- Driver Type: Wireless (IEC62386-104) with DALI DT1
- Emergency Mode: Non-Maintained
- Emergency Classification: C0:D63, C90:D63
- Emergency Output Power: 2100 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 330 lumens
- Replacement Battery Code: 01302
- Dimmable: No
- Dimensions (H x L x W): 80mm x 200mm x 200mm
- Weight: 1.2 kg
Key Features
- IP44 rated front face for moisture resistance
- Polycarbonate body for durability
- Non-maintained emergency mode with 90 minutes duration
- Wireless DALI DT1 emergency control with IEC62386-104 compliance
- Emergency output power of 2100 mW and lumen output of 330 lm
- Supports wireless test and monitoring over IEC62386-104
- Recessed installation type
- Operating temperature range from 0 to 40 °C
- Low standby power consumption of 0.25 W
- Maximum wattage of 2.5 W
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and safety standards and proper integration with emergency systems.
Applications
- Commercial buildings requiring emergency lighting
- Public spaces and corridors
- Recessed installation in ceilings for emergency illumination
Standards & Compliance
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
- AS/NZS 60598 – Luminaires
- AS/NZS 61347 – Lamp Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during emergency operation
- Wireless monitoring reduces the need for manual testing, lowering maintenance resource use
- Long product design life of 8 years reduces waste and replacement frequency
Warranty Information
6 years return to base (RTB) commercial use warranty.
Available Now
The Ektor Lynk Ledfire Advanced Emergency Luminaire - D63 - Wireless is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
