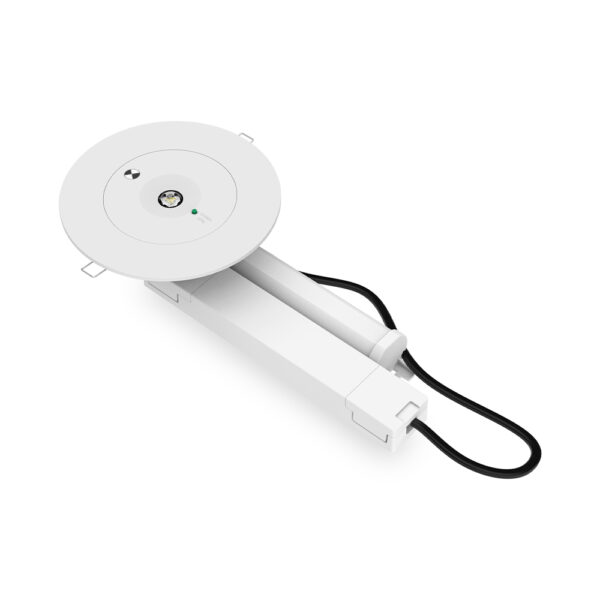

Ektor Lynk Ledfire Emergency Luminaire | IP44 Rated | Wireless DALI DT1 Monitoring | 90 Min Emergency Duration | by Ektor
The Ektor Lynk Ledfire Emergency Luminaire is designed for reliable emergency lighting in commercial and public spaces. With an IP44 rating for moisture resistance and a non-maintained emergency mode lasting 90 minutes, this recessed luminaire ensures safety during power outages. Its wireless DALI DT1 compliance allows for easy monitoring and testing, making it a perfect choice for modern installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, Wireless Emergency Light, Recessed Emergency Light, LED Fire Emergency Luminaire
Technical Specifications
- IP Rating: IP44 front face only
- Body Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2.5 W
- Standby Power: 0.25 W
- LED Wattage: 4.3 W
- Emergency Mode: Non-Maintained
- Emergency Duration: 90 minutes
- Emergency Output Power: 2900 mW
- Emergency Lumen Output: 320-380 lm depending on model
- Driver Type: Wireless IEC62386-104 with DALI DT1
- Dimmable: No
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Replacement Battery Code: 01303
- Product Design Life: 12 years
- Dimensions (H x L x W): 150mm x 80mm x 150mm
- Weight: 1.2 kg
Key Features
- IP44 rated front face for moisture resistance
- Non-maintained emergency mode with 90 minutes duration
- Wireless IEC62386-104 compliant with DALI DT1 monitoring
- Polycarbonate body with recessed installation
- Low standby power consumption of 0.25 W
- Maximum wattage of 2.5 W with LED wattage of 4.3 W
- Supports emergency test and monitoring over wireless and DALI
- Product design life of 12 years
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings requiring emergency lighting
- Public spaces and corridors
- Recessed installation in ceilings for emergency illumination
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption reduces energy usage during standby and operation
- Long product design life minimizes waste and replacement frequency
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Ledfire Emergency Luminaire D80 PRO Wireless is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
