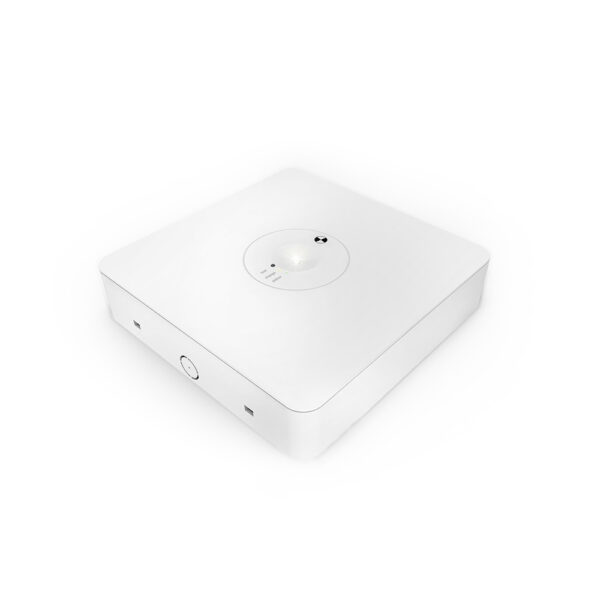

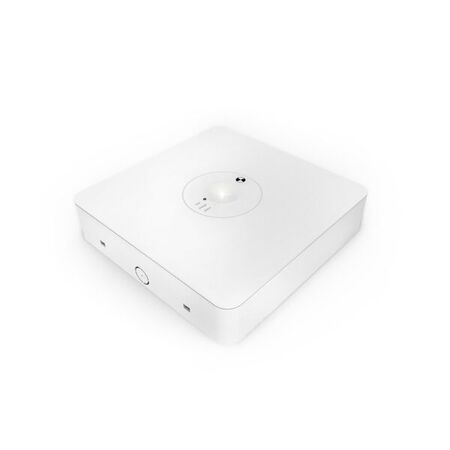

Ektor Lynk Ledfire Surface Mount EM Luminaire | IP20 Rated | Wireless DALI DT1 | 90 Min Emergency Duration | by Ektor
The Ektor Lynk Ledfire Surface Mount EM Luminaire is designed for commercial and industrial emergency lighting, featuring a robust IP20 rating and a wireless DALI DT1 compliance for seamless emergency test and monitoring. With a powerful 370 lm output and a 90-minute emergency duration, this luminaire ensures safety and reliability in any workspace, making it an essential choice for effective emergency illumination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Surface Mount Luminaire, Wireless Emergency Light, DALI Emergency Luminaire
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 3 W
- LED Wattage: 4.3 W
- Emergency Output Power: 4300 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 370 lm
- Driver Type: Wireless DALI DT1 (IEC62386-104) with DT1
- Dimmable: No
- Installation Type: Surface mount
- Body Material: Polycarbonate
- Working Temperature Range: 0 to 40 °C
- Wiring Type: Re-wireable terminal block (5 pin)
- Dimensions (H x L x W): 80mm x 300mm x 300mm
- Weight: 1.2 kg
Key Features
- Surface mount installation with polycarbonate body
- Non-maintained emergency mode with 90 minutes duration
- Wireless DALI DT1 compliant for emergency test and monitoring
- Emergency lumen output of 370 lm with 4.3 W LED wattage
- Re-wireable 5 pin terminal block wiring
- Operating temperature range 0 to 40 °C
- Standby power consumption of 0.25 W
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with emergency lighting standards and proper wireless DALI integration.
Applications
- Commercial and industrial emergency lighting
- Surface mount emergency illumination in buildings
- Emergency exit and safety lighting in workplaces
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption reduces energy waste
- Long product design life of 12 years minimizes replacement frequency
- Energy-efficient LED technology
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Ledfire Surface Mount EM Luminaire is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
