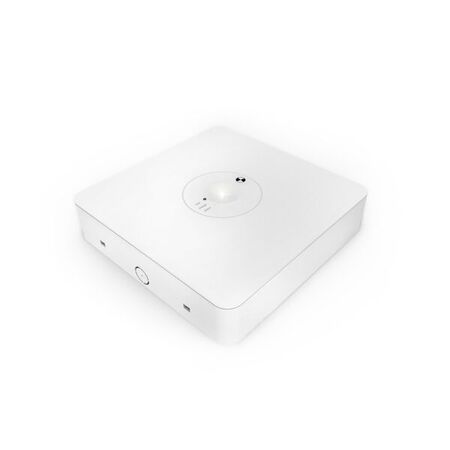

Ektor Lynk Ledfire Surface Mounted Emergency Luminaire | Wireless DALI DT1 Control | 90 Min Emergency Duration | 370 lm Output | by Ektor
The Ektor Lynk Ledfire Surface Mounted Emergency Luminaire is designed for reliable emergency lighting in commercial and public spaces. Featuring wireless DALI DT1 control and a robust polycarbonate body, it ensures 90 minutes of emergency illumination with a powerful 370 lumen output. Ideal for safety lighting in offices and public buildings, this luminaire combines efficiency with compliance to electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Luminaire, Wireless Emergency Light, Surface Mounted Emergency Light, DALI Emergency Luminaire
Technical Specifications
- IP Rating: IP20
- Colour temperature: Not specified
- LED Wattage: 4.3 W
- Maximum Wattage: 3 W
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Working Temperature Range: 0 to 40 °C
- Driver Type: DALI DT1 Emergency and Wireless IEC62386-104 with DT1
- Wiring Type: Re-wireable terminal block (5 pin)
- Emergency Output Power: 4300 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 370 lm
- Emergency Classification: C0:D80, C90:D80
- Dimmable: No
- Replacement Battery Code: 01303
- Dimensions (H x L x W): 100mm x 300mm x 250mm
- Weight: 1.2 kg
Key Features
- Surface mount installation
- Non-maintained emergency mode
- Wireless DALI DT1 emergency control compliant with IEC62386-104
- DALI monitored with emergency test and monitoring support
- Polycarbonate body material
- Input voltage range 216Vac - 253Vac
- Emergency duration of 90 minutes
- Emergency lumen output of 370 lm
- Standby power consumption of 0.25 W
- Product design life of 12 years
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial buildings emergency lighting
- Surface mounted emergency illumination
- Safety lighting in public and workspaces
Standards & Compliance
- AS/NZS 60598.1 – Luminaires
- AS 60598.2.22 – Emergency lighting luminaires
- AS/NZS 61347.1 – Lamp control gear
- AS/NZS 61347.2.13 – Emergency lighting control gear
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics
- AS/NZS 2293.3 – Emergency escape lighting and exit signs
Environmental Benefits
- Low standby power consumption reduces energy waste
- Long product design life minimizes replacement frequency and waste
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Ledfire Surface Mounted Emergency Luminaire - D80 - PRO with wireless control is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
