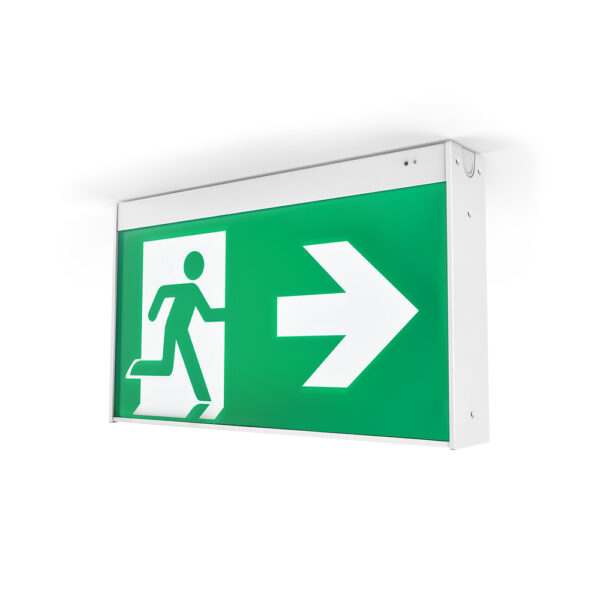

Ektor Lynk Mercury Jumbo Emergency LED Exit | Wireless DALI Driver | Maintained Mode | 90 Min Duration | by Ektor
The Ektor Lynk Mercury Jumbo Emergency LED Exit is designed for reliable emergency signage in commercial buildings. Featuring a wireless DALI driver and maintained mode with a 90-minute duration, this exit light ensures safety compliance with a viewing distance of 40 meters. Built with a durable powder-coated steel body and polycarbonate diffuser, it’s perfect for wall or ceiling installation in public spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Exit Sign, Wireless Emergency Exit Light, DALI Emergency Exit Sign, Maintained Emergency Exit Light
Technical Specifications
- IP Rating: IP20
- Maximum Wattage: 4.5 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Standby Power: 2.5 W
- Driver Type: DALI DT1 Emergency with wireless IEC62386-104 option
- Emergency Output Power: 1400 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 40 meters
- Decal Size: 500 x 250 mm
- Operating Temperature Range: 0 to 40 °C
- Body Material: Powder coated steel
- Diffuser Material: Polycarbonate
- Installation Type: Wall or Ceiling
- Emergency Light Source Life: >20 years
- Product Design Life: 12 years
- Dimensions (H x L x W): 250mm x 100mm x 500mm
- Weight: 2.5 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- DALI DT1 Emergency driver included with wireless option
- Powder coated steel body with polycarbonate diffuser
- Supports emergency test and monitoring over DALI and IEC62386-104 wireless
- Viewing distance of 40 meters
- Long LED light source life exceeding 20 years
- Product design life of 12 years
- Input voltage range 216Vac - 253Vac
- Standby power consumption as low as 2.5 W
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with emergency lighting standards and proper integration with building safety systems.
Applications
- Emergency exit signage for commercial buildings
- Wall or ceiling installation in public and commercial spaces
- Maintained emergency lighting for safety compliance
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during standby and emergency operation
- Long product and LED life reduces waste and replacement frequency
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Mercury Jumbo Emergency LED Exit PRO Wireless is available for immediate purchase, ideal for commercial and public building emergency exit lighting applications.
