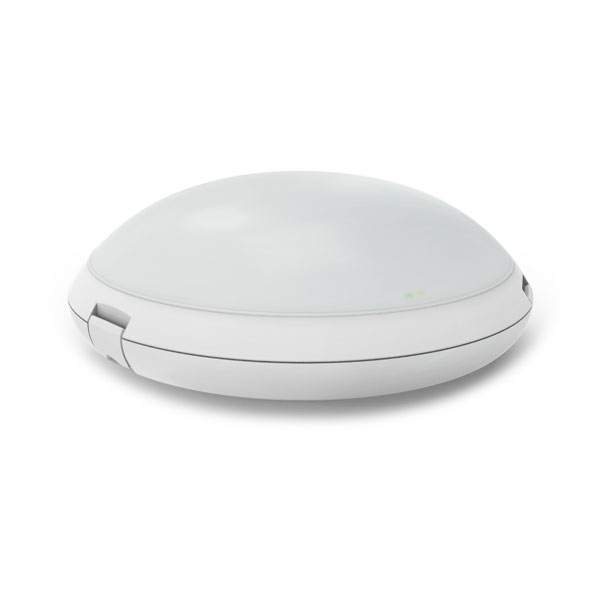

Ektor Lynk Pearl Emergency Circular Pro | 25W IP65 | Tuneable White with Sensor | Wireless Control | by Ektor
The Ektor Lynk Pearl Emergency Circular Pro is a 25W IP65-rated emergency light designed for commercial and industrial applications. With tuneable white LED technology and an integrated microwave sensor, it offers advanced control and energy efficiency. Ideal for outdoor and wet areas, this surface mount luminaire ensures reliable performance and safety during emergencies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Circular LED Light, Tuneable White Emergency Light, IP65 Emergency Luminaire, DALI Emergency Light, Wireless Emergency LED, Surface Mount Emergency Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inbuilt Mains Rated DALI Switch supporting IEC62386-301, IEC62386-302, IEC62386-303
- Power Factor: 0.95
- Maximum Wattage: 25 W
- Input Voltage: 230Vac (216Vac - 253Vac range in Australia)
- Standby Power: 0.3 W
- Colour Rendering Index (CRI): >84
- CCT Configuration: Tuneable White (3000K to 6500K)
- LED Voltage: 33 V
- LED Current: 650 mA
- LED Lifetime: >120000 hours (TM-21 Reported)
- L90B10 Lifetime at 25°C and 40°C: 43000 hours
- Luminaire Lumens: >3200 lm
- Driver Type: DALI DT8 Dimmable with full support for DT6 and DT8-tc
- Dimmable: Yes
- Wiring Type: Re-wireable terminal block (6 pin)
- Power Monitoring: DALI Device type 51
- Short Term Light Modulation (PstLM): 0.08
- Stroboscopic Visibility Measure (SVM): 0.018
- Sensor Type: Microwave with 10 m detection range and DALI 2 communication
- Emergency Mode: Maintained
- Emergency Classification: C0:D40, C90:D40
- Emergency Output Power: 2700 mW
- Emergency Duration: 90 minutes
- Replacement Battery Code: 01302
- Product Design Life: 12 years
- Dimensions (H x L x W): 60mm x 300mm x 300mm
- Weight: 3 kg
Key Features
- IP65 rated for outdoor and wet area use
- Tuneable white LED with DALI-2 DT8 full colour control
- Integrated microwave sensor with adjustable settings via DALI
- Wireless control support compliant with IEC62386-104
- Maintained emergency lighting with 90 minutes duration
- High LED lifetime and reliability with L90B10 rating of 43000 hours
- Power monitoring capability via DALI Device type 51
- Robust polycarbonate construction with IK08 impact rating
- Surface mount installation for easy fitting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Emergency lighting for commercial and industrial buildings
- Outdoor and wet area lighting requiring IP65 protection
- Areas requiring tuneable white lighting for visual comfort
- Buildings with DALI-2 lighting control systems
- Locations needing wireless and sensor-based lighting control
- Surface mount lighting installations
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires Part 2.1: Particular Requirements for Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
- AS/NZS 4268 – EMC for Lighting Equipment
- AS/NZS 60598.2.22 – Luminaires Part 2.22: Particular Requirements for Emergency Luminaires
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable and tuneable white features optimize lighting usage and comfort
- Power monitoring enables energy management and reduction
- Wireless and sensor controls reduce unnecessary lighting operation
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years) for registered users. Standard commercial use warranty is 5 years return-to-base.
Available Now
The Ektor Lynk Pearl Emergency Circular Pro 25W IP65 Tuneable White with Sensor and Wireless is available for immediate purchase. Ideal for commercial and industrial emergency lighting applications requiring advanced control and durability.
