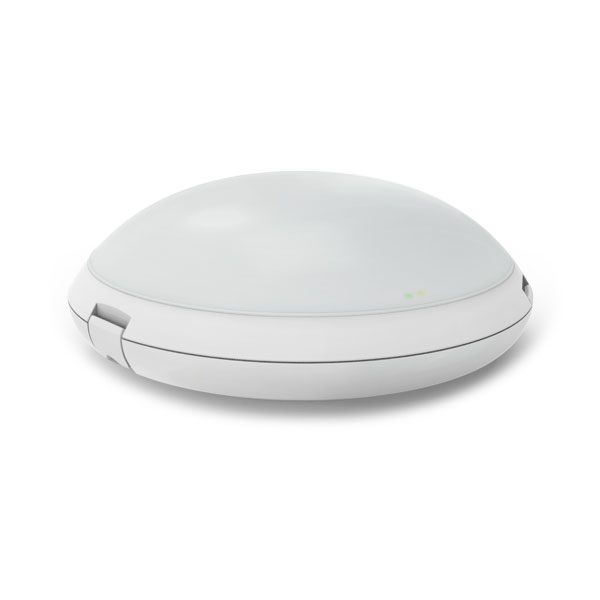

Ektor Lynk Pearl Emergency Circular Pro | 25W | IP65 & Tuneable White | Wireless Control | by Ektor
The Ektor Lynk Pearl Emergency Circular Pro is a powerful 25W emergency light designed for both indoor and outdoor use. With an IP65 rating and tuneable white color temperature ranging from 3000K to 6500K, it’s perfect for commercial and industrial applications. Featuring wireless control and DALI-2 support, this light ensures reliable performance and energy efficiency, making it an ideal choice for emergency lighting solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ektor Lynk Pearl Emergency Light, Ektor Emergency Circular Pro, Tuneable White Emergency Light, Wireless Emergency LED Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inbuilt mains rated DALI switch supporting IEC62386-301, 302, 303
- Power Factor: 0.95
- Maximum Wattage: 25 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Standby Power: 0.3 W
- Colour Rendering Index (CRI): >84
- CCT: Tuneable White 3000K to 6500K
- Luminaire Lumens: >3200 lm
- LED Voltage: 33 V
- LED Current: 650 mA
- LED Lifetime: >120,000 hours (TM-21)
- LED Lifetime Ratings: L90B10 at 43,000 hours (25°C and 40°C)
- Driver Type: DALI DT8 Dimmable with full DT6 and DT8-tc support
- Dimmable: Yes
- Wiring Type: Re-wireable terminal block (6 pin)
- Power Monitoring: DALI Device type 51
- Short Term Light Modulation (PstLM): 0.08
- Stroboscopic Visibility Measure (SVM): 0.018
- Emergency Mode: Maintained
- Emergency Output Power: 2700 mW
- Emergency Duration: 90 minutes
- Replacement Battery Code: 01302
- Product Design Life: 12 years
- Dimensions (H x L x W): 80mm x 300mm x 300mm
- Weight: 3 kg
Key Features
- IP65 and IK08 rated for robust outdoor and indoor use
- Tuneable white colour temperature from 3000K to 6500K with DALI-2 DT8 support
- Wireless control capability with IEC62386-104 compliance
- Inbuilt mains rated DALI switch supporting multiple IEC62386 switch types
- High power factor of 0.95 and low standby power consumption (0.3W)
- LED lifetime greater than 120,000 hours with L90B10 rating at 25°C and 40°C
- DALI device type 51 power monitoring for energy management
- Microwave sensor option with adjustable settings via DALI
- Maintained emergency mode with 90 minutes duration and DALI monitored testing
- Robust polycarbonate body and diffuser with white finish
- Surface mount installation type
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Emergency lighting for commercial and industrial buildings
- Surface mount installations in indoor and outdoor environments
- Areas requiring IP65 rated emergency lighting with tuneable white control
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 4268 – Control Gear for LED Modules
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring enables optimized energy management
- Low standby power reduces unnecessary energy use
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years) for registered users. Standard commercial use warranty is 5 years return-to-base.
Available Now
The Ektor Lynk Pearl Emergency Circular Pro 25W IP65 Tuneable White Wireless is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
