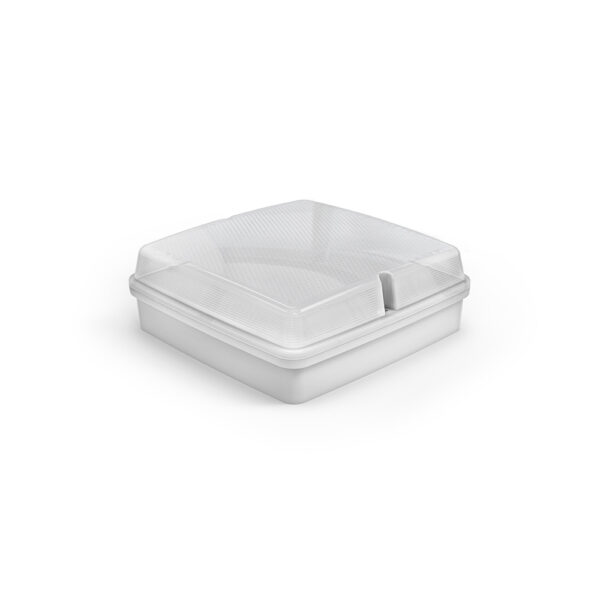

Ektor Lynk Quadro LED Bunker Light | IP65 Rated | DALI-2 Wireless Control | Tunable White | by Ektor
The Ektor Lynk Quadro LED Bunker Light is an IP65-rated solution designed for commercial and industrial outdoor lighting. With a tunable white color temperature ranging from 3000K to 6500K and DALI-2 wireless control, it ensures optimal lighting for safety and comfort. Built with a durable polycarbonate body and an impressive LED lifetime of over 120,000 hours, this light is perfect for emergency and architectural applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Bunker Light, LED Emergency Bunker Light, IP65 LED Surface Light, DALI LED Bunker Light, Wireless LED Bunker Light
Technical Specifications
- Dimensions (H x L x W): 120mm x 300mm x 300mm
- Weight: 3 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Polycarbonate body and diffuser for durability
- Surface mount installation
- Inbuilt mains rated DALI switch supporting IEC62386 standards
- Power factor of 0.95 with maximum wattage of 25W
- Tunable white colour temperature from 3000K to 6500K
- High CRI >84 for accurate colour rendering
- LED lifetime over 120,000 hours with L90B10 rating at 43,000 hours
- DALI-2 DT8 dimmable driver with wireless control options
- Inbuilt DALI-2 power monitoring (Device type 51)
- Low standby power consumption of 0.3W
- Microwave sensor option with DALI 2 communication
- Maintained emergency mode with 90 minutes duration and 390 lumens output
- Product design life of 12 years
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
- Commercial and industrial outdoor lighting
- Emergency and safety lighting
- Surface mounted architectural and security lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS/NZS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED and product life reduces waste and replacement frequency
- Dimmable and tunable white features optimize lighting usage and comfort
- Low standby power consumption minimizes energy waste
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard commercial use warranty is 5 years return-to-base.
Available Now
The Ektor Lynk Quadro LED Bunker IP65 PRO with Wireless is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
