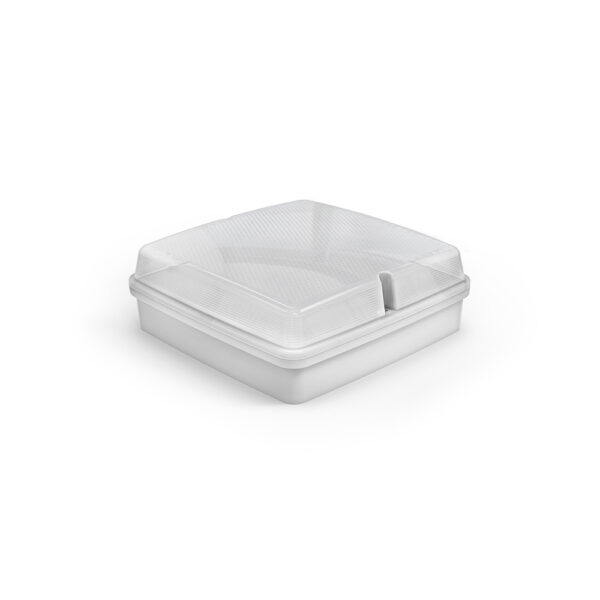

Ektor Lynk Quadro LED Bunker Light | IP65 & IK08 Rated | Tunable White | DALI Compatible | by Ektor
The Ektor Lynk Quadro LED Bunker Light is designed for durability and efficiency, featuring an IP65 and IK08 rated polycarbonate body. With tunable white technology, it offers a color temperature range from 3000K to 6500K, making it ideal for commercial and industrial outdoor lighting. The inbuilt DALI switch allows for advanced control, while the microwave sensor enhances security and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Bunker Light with Sensor, Wireless LED Bunker Light, Tunable White LED Bunker, DALI LED Bunker Light, Emergency LED Bunker Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Power Factor: 0.95
- Maximum Wattage: 25 W
- Standby Power: 0.3 W
- Colour Rendering Index (CRI): >84
- CCT Configuration: Tunable White (3000K to 6500K)
- LED Voltage: 36 V
- LED Current: 650 mA
- LED Lifetime: >120,000 hours (TM-21)
- Luminaire Lumens: >3200 lm
- Driver Type: DALI DT8 Dimmable with wireless options
- Wiring Type: Re-wireable terminal block (6 pin)
- Sensor Type: Microwave with 10 m detection range
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 390 lm
- Product Design Life: 12 years
- Dimensions (H x L x W): 120mm x 300mm x 300mm
- Weight: 3 kg
Key Features
- IP65 and IK08 rated polycarbonate body and diffuser for durability and weather resistance
- Surface mount installation for easy setup
- Inbuilt mains rated DALI switch supporting IEC62386 standards for advanced control
- Power factor of 0.95 with maximum wattage of 25W
- Tunable white LED with colour temperature range from 3000K to 6500K
- LED lifetime greater than 120,000 hours with L90B10 rating at 25°C and 40°C
- DALI DT8 dimmable driver with wireless options supporting flicker-free dimming and colour control
- Inbuilt DALI-2 sensor with microwave detection and adjustable settings
- Maintained emergency mode with 90 minutes duration and 390 lumens output
- Power monitoring capability with DALI device type 51 support
- Low standby power consumption of 0.3W
- Short Term Light Modulation (PstLM) of 0.08 and Stroboscopic Visibility Measure (SVM) of 0.018 ensuring visual comfort
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
- Commercial and industrial outdoor lighting
- Security and perimeter lighting
- Emergency and safety lighting in public and private facilities
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS/NZS CISPR 15
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable and tunable white features optimize lighting usage and reduce energy waste
- Power monitoring enables efficient energy management
Warranty Information
Standard 5 years return-to-base warranty. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Ektor Lynk Quadro LED Bunker IP65 with Sensor - PRO Wireless is available for immediate purchase. Ideal for commercial, industrial, and emergency lighting applications requiring robust, energy-efficient, and smart lighting solutions.
