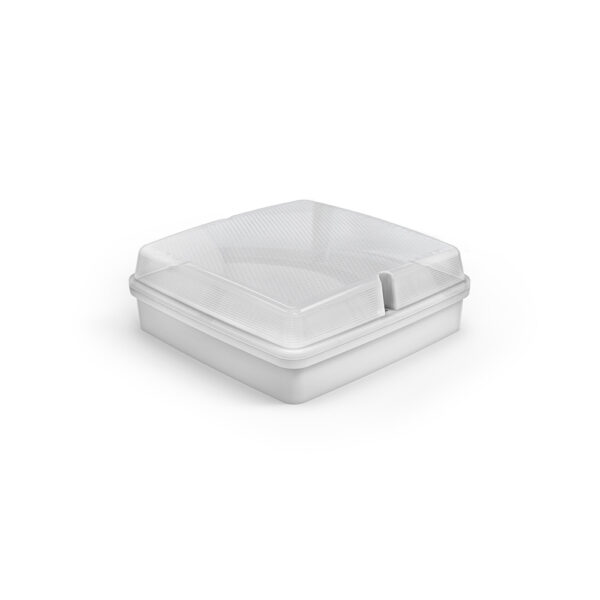

Ektor Lynk Quadro LED Emergency Bunker | IP65 & IK08 Rated | DALI-2 Compliant | Tunable White | by Ektor
The Ektor Lynk Quadro LED Emergency Bunker is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 and IK08 rating, this surface-mounted light features a DALI-2 compliant system for smart control and a tunable white color temperature range of 3000K to 6500K. Ideal for corridor lighting, it ensures safety and efficiency with a long LED lifetime of over 120,000 hours and maintained emergency mode for 90 minutes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Bunker Light, Emergency Corridor Light, DALI Emergency LED, Wireless Emergency Light, Tunable White Emergency Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Body and Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Power Factor: 0.95
- Maximum Wattage: 25 W (standard), 27 W (emergency models)
- Standby Power: 0.3 W
- Colour Rendering Index (CRI): >84
- Colour Temperature: Tunable White 3000K to 6500K
- LED Voltage: 36 V
- LED Current: 650 mA
- LED Lifetime: >120,000 hours (TM-21)
- Luminaire Lumens: >3200 lm
- Driver Type: DALI DT8 Dimmable, Wireless options available
- Wiring Type: Re-wireable terminal block (6 pin)
- Power Monitoring: DALI Device type 51
- Sensor Type: Microwave with corridor function
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 390 lm
- Product Design Life: 12 years
- Dimensions (H x L x W): 100mm x 300mm x 300mm
- Weight: 3.5 kg
Key Features
- IP65 and IK08 rated polycarbonate body and diffuser for durability and weather resistance
- Surface mount installation for easy setup
- Inbuilt mains rated DALI switch supporting IEC62386-301, 302, 303
- Power factor of 0.95 with maximum wattage of 25-27 W depending on model
- Tunable white LED with colour temperature range 3000K to 6500K
- LED lifetime over 120,000 hours with L90B10 rating at 25°C and 40°C
- DALI DT8 dimmable driver with wireless options supporting flicker-free dimming and colour control
- Inbuilt DALI-2 sensor with microwave detection and corridor function
- Maintained emergency mode with 90 minutes duration and 390 lumens emergency output
- Power monitoring via DALI device type 51
- Short term light modulation (PstLM) of 0.08 and stroboscopic visibility measure (SVM) of 0.018
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with DALI-2 control systems and emergency lighting standards.
Applications
- Emergency lighting for commercial and industrial buildings
- Surface mounted emergency and corridor lighting
- DALI-2 compliant smart lighting control systems
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS/NZS CISPR 15
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable and tunable white features optimize lighting usage and comfort
- Power monitoring enables energy management and reduction
Warranty Information
Standard 5 years return-to-base warranty. VIP warranty offers 2 years onsite plus 3 years return-to-base for registered users in defined regions.
Available Now
The Ektor Lynk Quadro LED Emergency Bunker PRO is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
