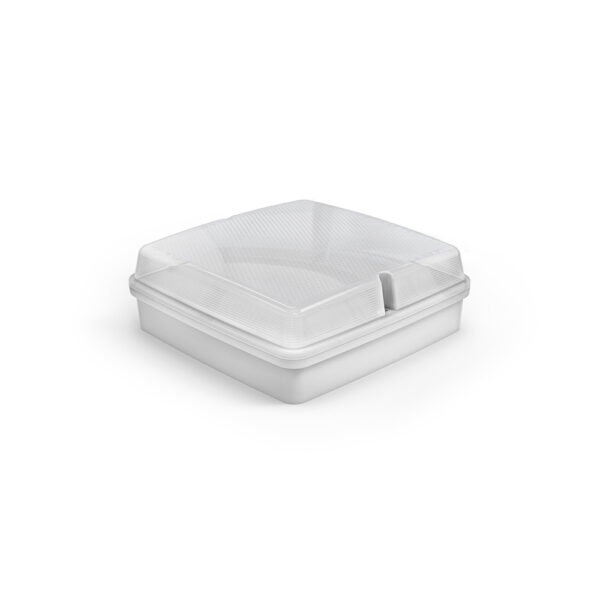

Ektor Lynk Quadro LED Emergency Bunker | IP65 Rated | Wireless DALI Control | Tunable White | by Ektor
The Ektor Lynk Quadro LED Emergency Bunker is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 rating for dust and water protection, this surface-mounted light features tunable white technology, allowing you to adjust the color temperature from 3000K to 6500K. Built for durability with a polycarbonate body and IK08 impact resistance, it ensures optimal performance and longevity, making it ideal for secure areas and DALI-2 compliant systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Bunker Light, Wireless Emergency LED Light, IP65 Emergency LED Luminaire, DALI Emergency Light, Tunable White Emergency Light
Technical Specifications
- Dimensions (H x L x W): 100mm x 300mm x 300mm
- Weight: 3.5 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK08 impact resistance
- Polycarbonate body and diffuser for durability
- Surface mount installation
- Inbuilt mains rated DALI switch supporting IEC62386-301, 302, 303
- Power factor of 0.95 with maximum wattage of 25W
- Standby power consumption of 0.3W
- Tunable white colour temperature from 3000K to 6500K with 3-step MacAdam ellipse
- LED lifetime greater than 120,000 hours with L90B10 rating at 25°C and 40°C
- Luminaire output greater than 3200 lumens
- DALI DT8 dimmable driver included with wireless options
- Re-wireable 6 pin terminal block wiring
- DALI device type 51 power monitoring supported
- Low flicker with PSTLM of 0.08 and SVM of 0.018
- Microwave sensor option with adjustable settings via DALI
- Maintained emergency mode with 90 minutes duration and 390 lumens emergency output
- Emergency test and monitoring over DALI and wireless IEC62386-104
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with DALI control systems and emergency lighting standards.
Applications
- Emergency lighting in commercial and industrial buildings
- Surface mounted emergency lighting for bunkers and secure areas
- DALI-2 compliant lighting control systems
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS/NZS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime reduces waste and replacement frequency
- Low standby power consumption minimizes energy use when idle
- DALI power monitoring enables energy management and optimization
Warranty Information
Standard 5 years return-to-base warranty. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users.
Available Now
The Ektor Lynk Quadro LED Emergency Bunker IP65 Wireless - PRO is available for immediate purchase. Ideal for commercial and industrial emergency lighting applications requiring robust, tunable white LED solutions with advanced DALI control.
